Product data sheet

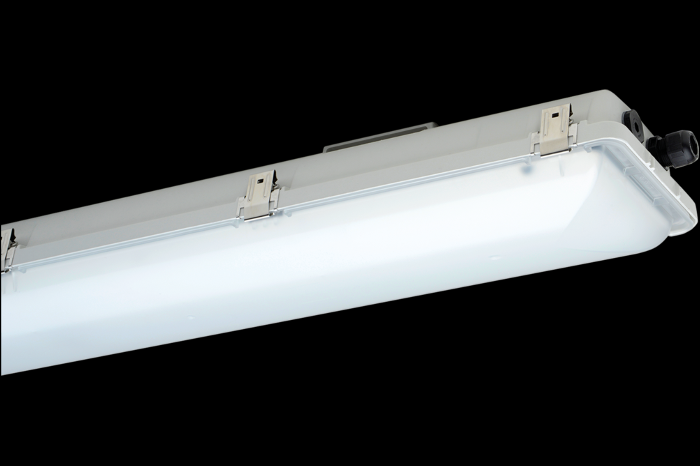

e865 ExeLED 1 Explosion-protected LED light fitting

e865 12L85 DV (86500 1013)

Schuch

Explosion-protected LED light fitting, ExeLED 1, EX-Zone 1/21/2/22, 54 W, 9010 lm, 167 lm/W, Class I, IP66, wide beam, 6500 K, CRI≥ 80, Ta -30 °C/+50 °C, L80B50>100000 h (@ Ta max), L80B50>100000 h (@ Ta 25°C), L90B50>80000 h (@ Ta 25°C), Diffuser PC clear, Closure Stainless steel (1.4571), Housing Glass fibre reinforced polyester, Colour grey, Through wiring (DV) 5x2.5 mm² PVC. Explosion-protected LED light fitting ExeLED 1 for zone 1/21. Glass fibre reinforced polyester housing, clear cover made of polycarbonate with silicone gasket and stainless steel clips, two of them as safety clip. Steel reflector, varnished, carrying the encapsulated LED modules, clipped into the cover, removable as a unit. Encapsulated ECG with overvoltage, overload and short circuit protection. External mounting system for variable mounting (accessory). Resource-saving and environmentally friendly thanks to interchangeability of components (no disposable light fitting). Length 1250,00 mm, Width/Diameter 182,00 mm, Height 114,00 mm, Net weight 7,20 kg.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 54 W 9010 lm 167 lm/W 6500 K 80
e865 ExeLED 1 Explosion-protected LED light fitting

e865 ExeLED 1 Explosion-protected LED light fitting

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted, Pendant, Pole top mounted

Shape and measurements

Length: 1250 mm

Width: 182 mm

Height: 114 mm

Adjustability

Fixed

Electric

System power: 54 W

Appliance Class: I

Protection

IP: 66

IK: 10

Designation labels: CE

Explosion zone suitability: 1

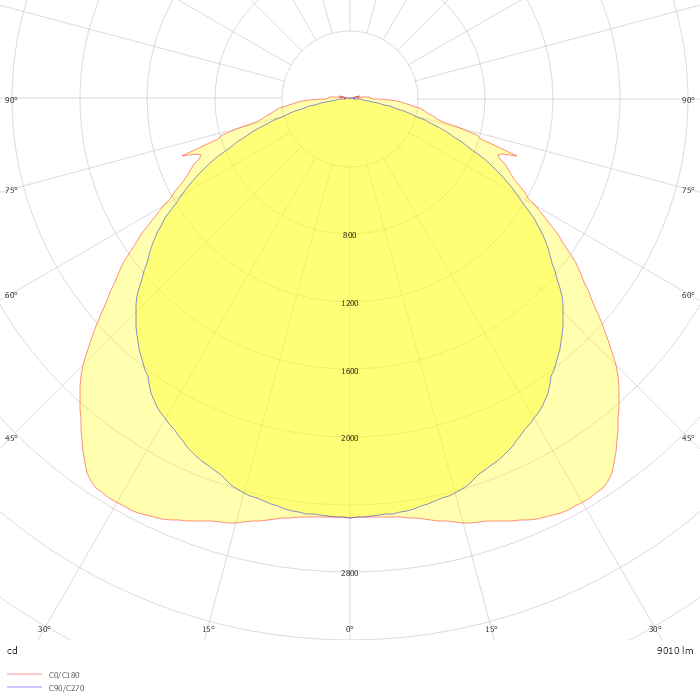

Photometric data

ZIP file
