Product data sheet

Iris Trimless Cone 35º

AV15-P6X9X2DSL8

LedsC4

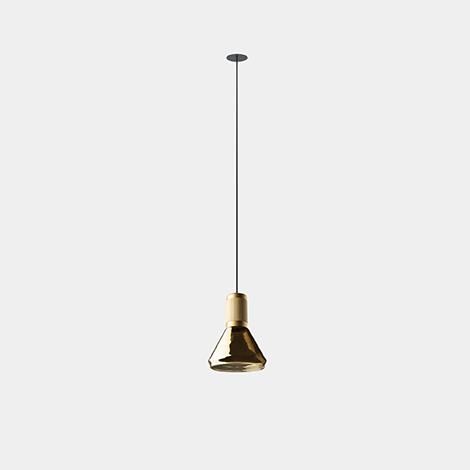

LedsC4 Iris Trimless Cone 35º AV15-P6X9X2DSL8 Pendant for indoor use. Structure material: Aluminium. Structure finish: Black/Gold/Gold. Warranty: 5 Years. Product net weight (Kg): 0.59 Product width or diameter (mm): 145 Product height (mm): 1705 Ø of the hole for recessing (mm): 57 Permitted ceiling thickness: 0-20 Class 2. Luminaire not suitable for coating with insulation materials. IP: IP43. LED. No. of lampholders or LEDs: 1. LED brand: CREE. Maximum power of light source: 5.7W. Colour temperature: 4000K. Colour rendering index: 92. MacAdam Steps: 2. Hours of life: 50.000h L80B20. UGR: 20.7. Photobiological risk: RG2. % de Flickering: <5%. Real flux (lm): 743. Real lm/W: 99. Voltage / frequency range: 110-277/50-60Hz. Voltage: 16.8. Equipment included: Yes. Total power: 7.5. Power factor: 0.90. Dimmable equipment included: DALI-2.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 7.5 W 743 lm 99 lm/W 4000 K 90
Iris Trimless Cone 35º

Iris Trimless Cone 35º

Light output 1

1 x LED

Mounting mode

Pendant, Table luminaire

Shape and measurements

Length: 120 mm

Width: 120 mm

Height: 147 mm

Adjustability

Fixed

Electric

System power: 7.5 W

Appliance Class: II

Protection

IP: 43

Photometric data

ZIP file
