Product data sheet

DTFN ELITE LED THEATRE

D9NGAGY14K

Whitecroft

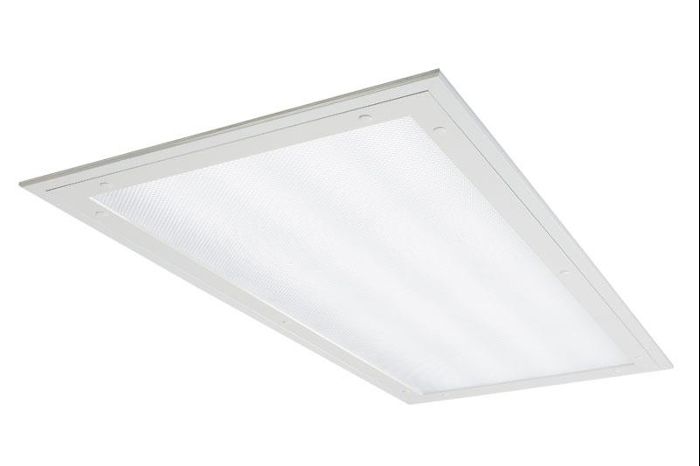

Recessed non-modular LED luminaire for prepared aperture ceilings to a BSI tested and certified construction as IP65 frame on IP54 frame off with twin in line extruded aluminium frames with angled integration and concealed front frame fixings. Suspension via robust aluminium cam brackets adjusted from outside the luminaire. White ra90 and green separately switched LEDs specifically for Healthcare environments – as Whitecroft Lighting DTFN ELITE LED THEATRE Lithium Emergency Output = 285 lumens

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 134.3 W 11012 lm 82 lm/W 4000 K 1
DTFN ELITE LED THEATRE

DTFN ELITE LED THEATRE

Light output 1 (integrated)

LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 1200 mm

Width: 600 mm

Height: 120 mm

Adjustability

Fixed

Electric

System power: 134.3 W

Protection

IP: 65

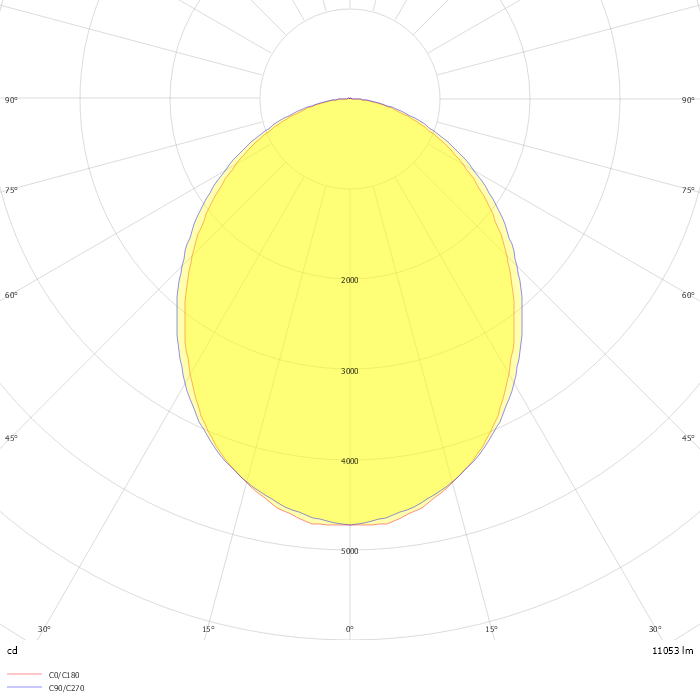

Photometric data

ZIP file
