Product data sheet

842 LED Panel - UGR<lt/>19 - CRI≥80 4000K CRI 80 33W CLD White

150205-00

Disano

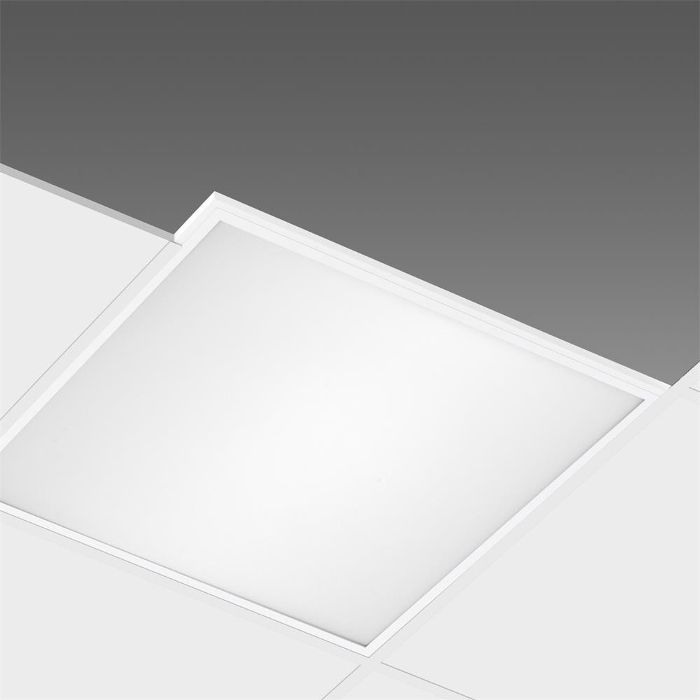

Product image 1: 842 LED Panel - UGR<lt/>19 - CRI≥80 4000K CRI 80 33W CLD White
Product image 1: 842 LED Panel - UGR<lt/>19 - CRI≥80 4000K CRI 80 33W CLD White

Product image 1: 842 LED Panel - UGR<lt/>19 - CRI≥80 4000K CRI 80 33W CLD White



IP
43

IK
06

Housing: body in steel sheet and frame in aluminium. Diffuser: in high transmittance prismatic technopolymer. Internal PMMA slab. : UGR<lt/>19, according to standard EN 12464. Low flicker: luminaire with very low flicker: evenly distributed light for greater visual safety. Photobiological risk: exempt risk group according to EN62471. : EN60598-1. They have a degree of protection according to the EN60529 standard. Equipment: Ceiling lighting fixture with external driver; it can be easily housed in false ceilings. Mounting: surface mounting on T-beams. Easy installation: quick connection without the need to open the luminaire, can be easily inserted into the ceiling. On request: - CLD-EC wiring for centrally powered emergency lighting (subcode -0050) - CLD-D (PUSH) (subcode -0045)

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 33 W 3600 lm 109 lm/W 4000 K 80
842 LED Panel - UGR<lt/>19 - CRI≥80 4000K CRI 80 33W CLD White

842 LED Panel - UGR<lt/>19 - CRI≥80 4000K CRI 80 33W CLD White

Light output 1

1 x LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 596 mm

Width: 596 mm

Height: 12 mm

Adjustability

Fixed

Design

Colour of housing: White

Electric

System power: 33 W

Appliance Class: II

Protection

IP: 43

IK: 06

Designation labels: CE, ENEC

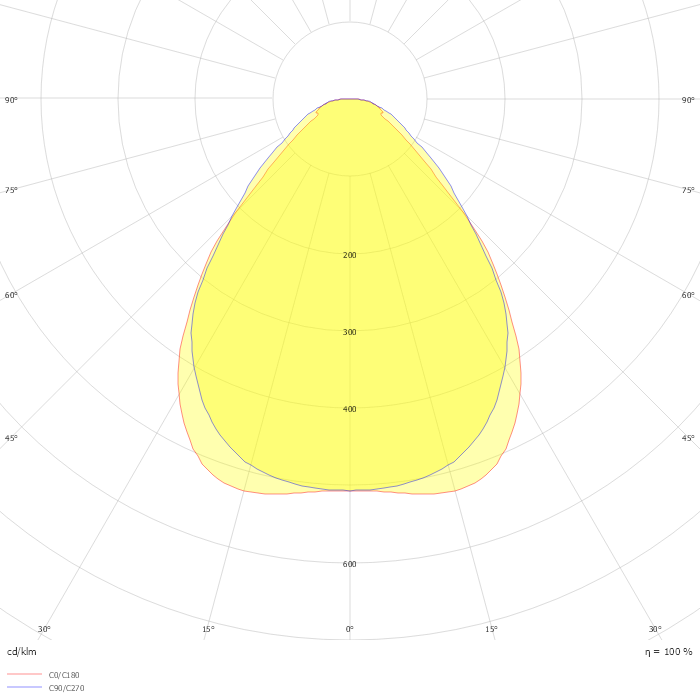

Photometric data

ZIP file
