Product data sheet

Duomo Small Shade wall luminaires

DU-30123-W40

LIGMAN

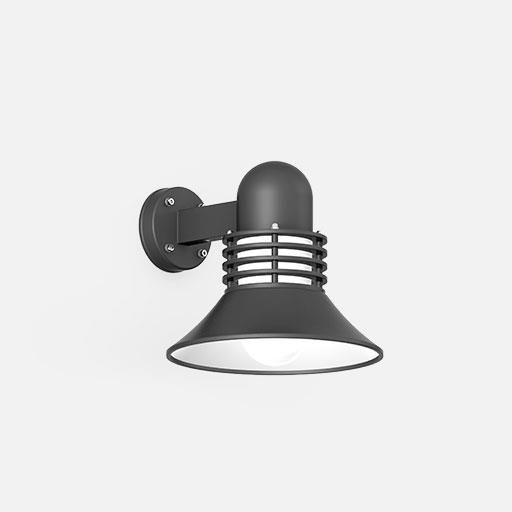

Product image 1: Duomo Small Shade wall luminaires
Product image 1: Duomo Small Shade wall luminaires

Product image 1: Duomo Small Shade wall luminaires



IP
55

IK
04

- Lamp COB - CRI Ra > 80 - MacAdam Ellipse 3 SDCM - Colour 3000K , 4000K - Life time L90B10 Ta 25° 50,700 - Life time L80B10 Ta 50° > 63,500 - Die-cast aluminium housing pre-treated before powder coating ensuring high corrosion resistance - Two cable entries for through wiring - Stainless steel fasteners in grade 316 - Durable silicone rubber gasket - Opal glass diffuser - Integral control gear

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 20 W 1375 lm 69 lm/W 4032 K 80
Duomo Small Shade wall luminaires

Duomo Small Shade wall luminaires

Light output 1 (integrated)

LED

Mounting mode

Wall mounted

Shape and measurements

Height: 316 mm

Diameter: 330 mm

Weight: 3.7 kg

Adjustability

Fixed

Design

Colour of housing: Black, White, Silver gray

Glare protection

Glare protection: UGR < 19

Electric

System power: 20 W

Voltage: 230 V AC

Ballast: ECG

Controller: Dimmable 1..10V, DALI

Appliance Class: I

Protection

IP: 55

IK: 04

Surface temperature: 40°C

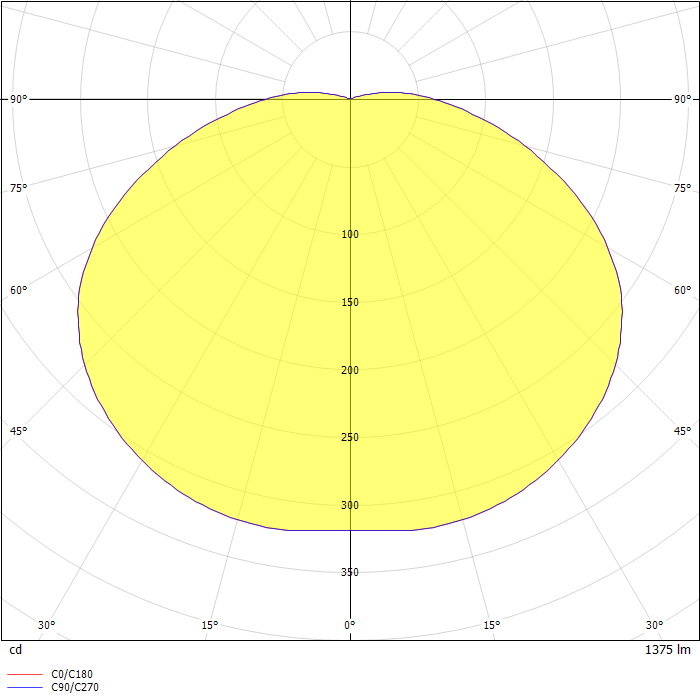

Photometric data

ZIP file

Download file
