Product data sheet

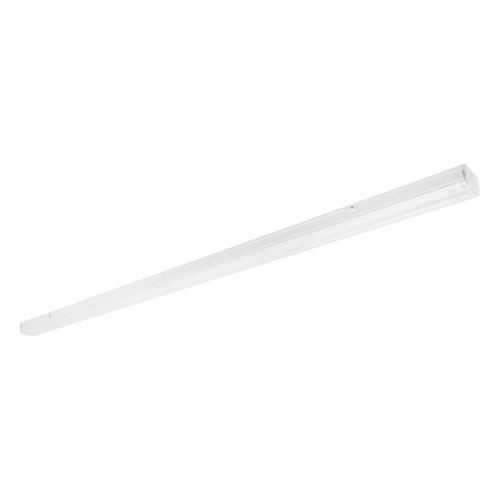

TRUSYS FLEX WALLWASHER 35W 840 WW CL WT

4099854190636

LEDVANCE

Luminaire inserts with asymmetric wallwasher light distribution, up to 175 lm/W. Product features: Beam angle wall washer: 1x40°. Click into place solution with smart click buttons. Luminous efficacy: up to 175 lm/W. Fixed luminare taps. Luminaire versions available with on-off or IoT-ready DALI-2 driver. Steel-sheet housing. Lens material: PMMA. Type of protection: IP40. Product benefits: Wall washer light distribution for directed wall illumination. Easy installation, no tools required for connection. Energy saving and cost-effective. Flexible application due to a range of different lumen packages and beam angles. 5 years guarantee. Areas of application: Direct replacement for luminaires with fluorescent lamps. Industry halls, high rack warehouse, hardware stores. Discounters, supermarkets. Equipment / Accessories: Mounting rail with fixed integrated 5- and 8-pole cable.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 35 W 6000 lm 171 lm/W 4000 K 80
TRUSYS FLEX WALLWASHER 35W 840 WW CL WT

TRUSYS FLEX WALLWASHER 35W 840 WW CL WT

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted, Pendant

Shape and measurements

Length: 1500 mm

Width: 78 mm

Height: 39 mm

Weight: 1.68 kg

Adjustability

Fixed

Design

Material impression: Stainless steel

Colour of housing: White

Electric

System power: 35 W

Appliance Class: I

Protection

IP: 40

IK: 04

Designation labels: CE, ENEC

Other operating numbers

Ambient temperature range: -25...40°C

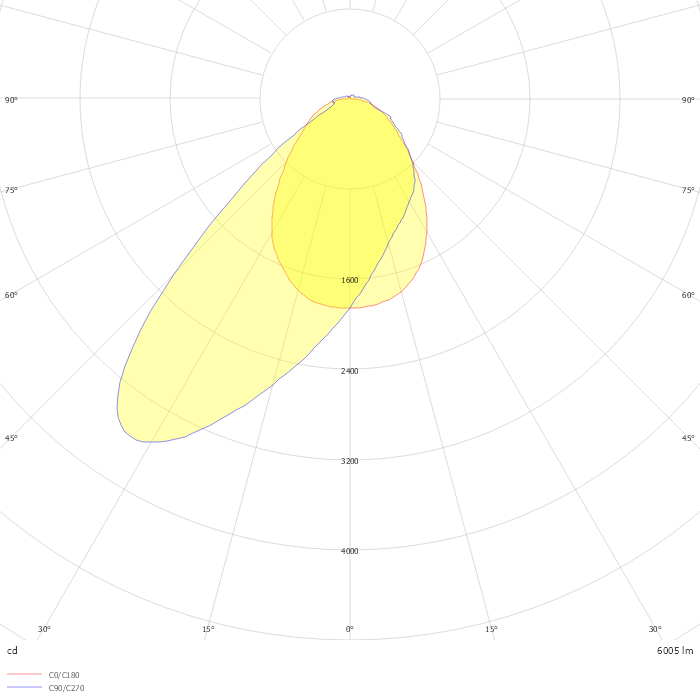

Photometric data
