Product data sheet

HB 105

611984.0031

RZB

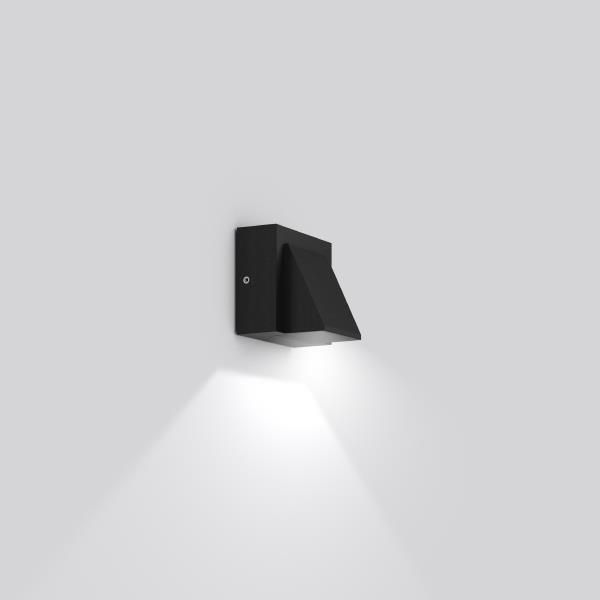

Product image 1: HB 105
Product image 1: HB 105

Product image 1: HB 105



IP
54

IK
06

Series: HB 105 Wall luminaire. Housing: die-cast aluminium, powder-coated. Clear glass cover. Light emission: one side. Driver integrated. Colour: anthracite metallic (DB703) Length: 80 mm Width: 66 mm Height: 75 mm Lamp: LED System power: 4 W Rated luminous flux: 110 lm Luminous efficiency: 28 lm/W Control gear: Regulated power supply Protection class: I Type of protection: IP 54

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 4 W 110 lm 28 lm/W 3000 K 80
HB 105

HB 105

Light output 1 (integrated)

LED

Mounting mode

Wall mounted

Shape and measurements

Length: 66 mm

Width: 80 mm

Height: 75 mm

Adjustability

Fixed

Electric

System power: 4 W

Protection

IP: 54

IK: 06

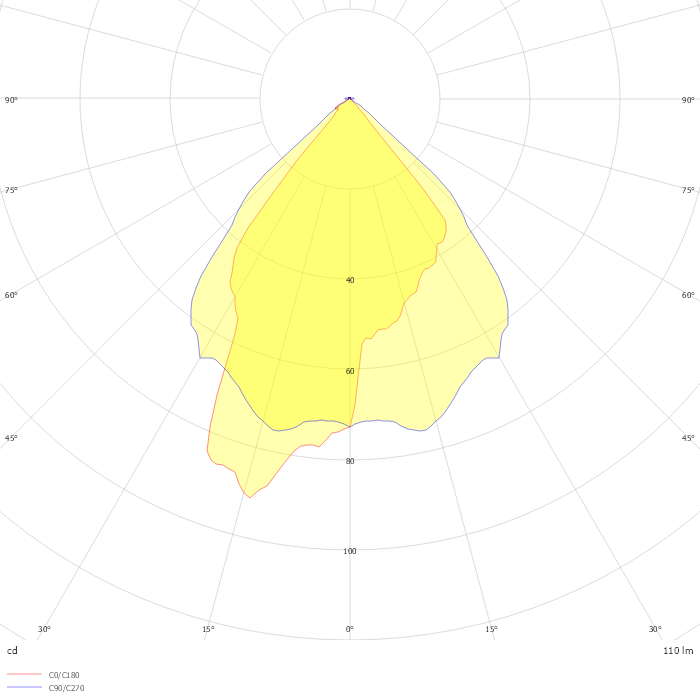

Photometric data

ZIP file

Download file
