Product data sheet

ProSite LED Floodlight 24000 Lumens, Asymmetric Distribution, Glass Lens

F1E7FL2Exxxxxx

Dialight

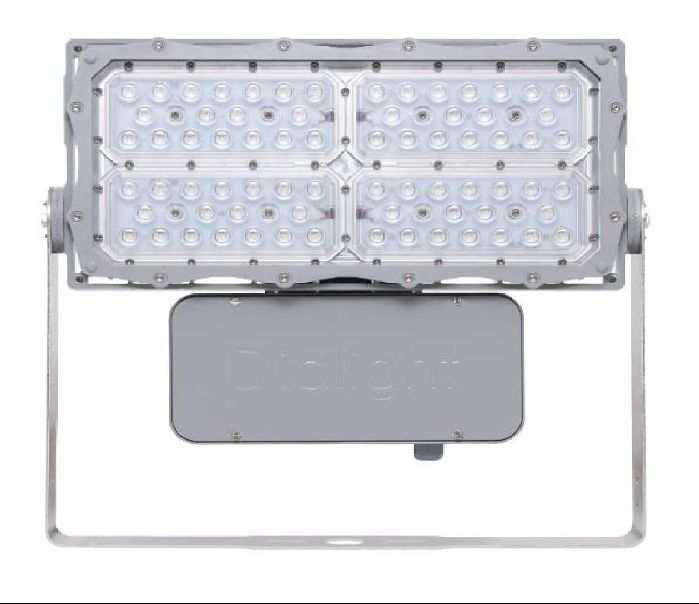

Product image 1: ProSite LED Floodlight 24000 Lumens, Asymmetric Distribution, Glass Lens
Product image 1: ProSite LED Floodlight 24000 Lumens, Asymmetric Distribution, Glass Lens

Product image 1: ProSite LED Floodlight 24000 Lumens, Asymmetric Distribution, Glass Lens



IP
66

IK
08

ProSite LED Floodlight 23,136 Lumens 175 Watts 120-277V AC / 120-250V DC Neutral White, 70CRI Glass Lens CE ENEC RCM IK08 Asymmetric Distribution IP66/67 LM79 Tested IES File

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 175 W 23137 lm 132 lm/W 3783 K 84
ProSite LED Floodlight 24000 Lumens, Asymmetric Distribution, Glass Lens

ProSite LED Floodlight 24000 Lumens, Asymmetric Distribution, Glass Lens

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted, Pole top mounted

Shape and measurements

Length: 381 mm

Width: 411 mm

Height: 78 mm

Adjustability

Rotatable, Tiltable

Electric

System power: 175 W

Appliance Class: I

Protection

IP: 66

IK: 08

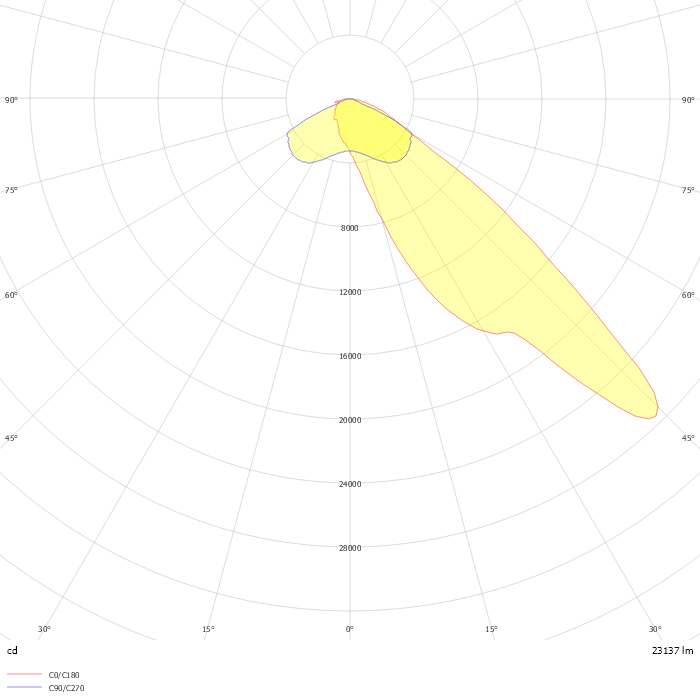

Photometric data

ZIP file

Download file
