Product data sheet

UNI-BRIGHT La Villa Strip 48 - WW

LVTST3000B

Proled (MBN GmbH)

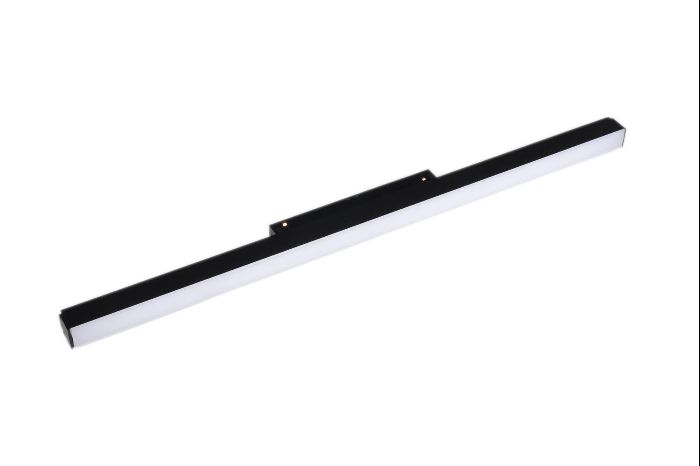

Product image 1: UNI-BRIGHT La Villa Strip 48 - WW
Product image 1: UNI-BRIGHT La Villa Strip 48 - WW

Product image 1: UNI-BRIGHT La Villa Strip 48 - WW



IP
20

Designer elongated fixture with LED strip and diffuser that provides a uniform light distribution. Fitted with a 48V adapter that can be clicked effortlessly into the LA VILLA 48 magnetic tracks. - Driver and magnetic track not included

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 13 W 1000 lm 77 lm/W 3000 K 90
UNI-BRIGHT La Villa Strip 48 - WW

UNI-BRIGHT La Villa Strip 48 - WW

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted, Mounting rail / light-band, Contact rail

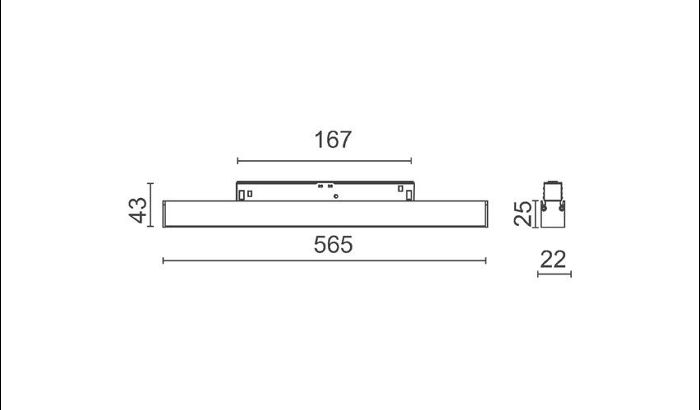

Shape and measurements

Length: 565 mm

Width: 22 mm

Height: 43 mm

Weight: 0.32 kg

Adjustability

Fixed

Electric

System power: 13 W

Appliance Class: III

Protection

IP: 20

Other operating numbers

Ambient temperature range: -10...45°C





Photometric data

ZIP file

Download file
