Product data sheet
M26L - SPY 392 93040 MDL
23260 9330
Delta Light

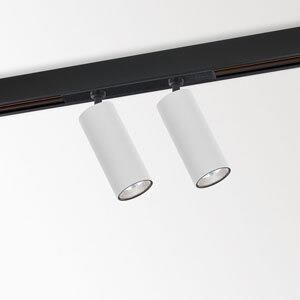

Luminaire, low voltage systems low voltage system mounted (indoor use) from Deltalight, named M26L - SPY 392 93040 MDL, available in the colour(s): black, white. This luminaire can be used with the following 48V magnetic lighting system(s): SHIFTLINE M26L - PROFILE, SLM26L F. This luminaire is equipped with 2 x (LED array 8,6W / CRI>90 (R9: 52) / 3000K / 1089lm) with build-in converter to operate on a voltage of 48V-DC. Dimming protocol: MDL = 1-10V or DALI or push button. Light distributor: reflector 40°.
| Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 9 W | 1089 lm | 121 lm/W | 3000 K | 90 |
| 1 x LED | 9 W | 1089 lm | 121 lm/W | 3000 K | 90 |
| 1 x LED | 9 W | 1089 lm | 121 lm/W | 3000 K | 90 |
| 1 x LED | 9 W | 1089 lm | 121 lm/W | 3000 K | 90 |
| Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 9 W | 1089 lm | 121 lm/W | 3000 K | 90 |
| 1 x LED | 9 W | 1089 lm | 121 lm/W | 3000 K | 90 |
| 1 x LED | 9 W | 1089 lm | 121 lm/W | 3000 K | 90 |
| 1 x LED | 9 W | 1089 lm | 121 lm/W | 3000 K | 90 |
Mounting mode
Ceiling mounted, Contact rail, Floor mounted, Pendant, Standing / Bollard
Shape and measurements
Length: 20 mm
Width: 170 mm
Height: 1 mm
Electric
System power: 40 W
Appliance Class: II
Protection
IP: 20
Designation labels: CE

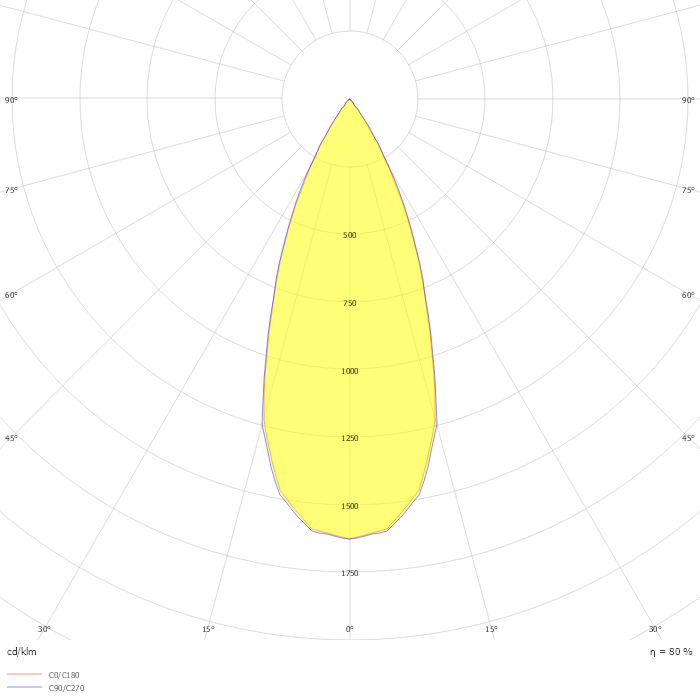

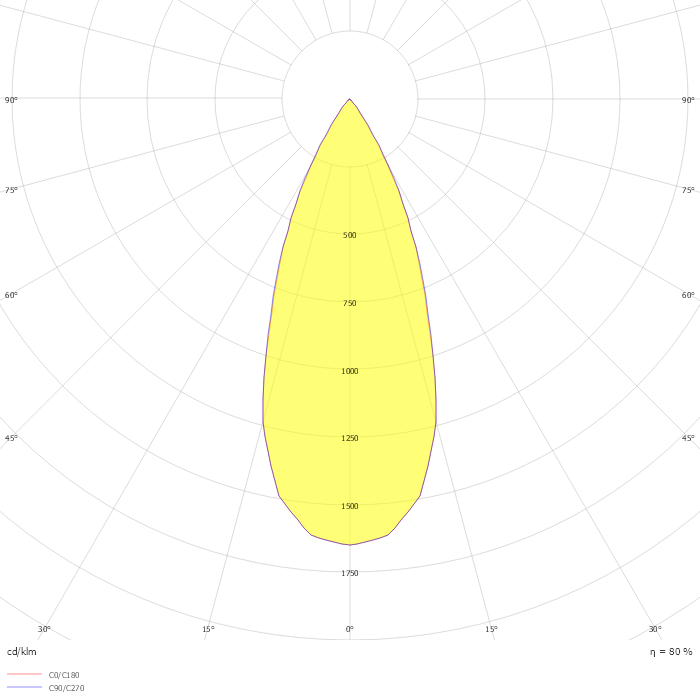

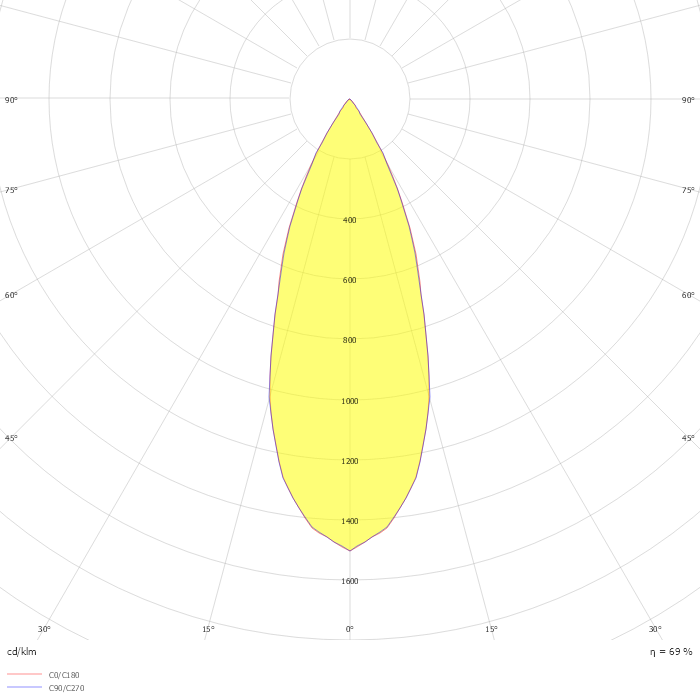

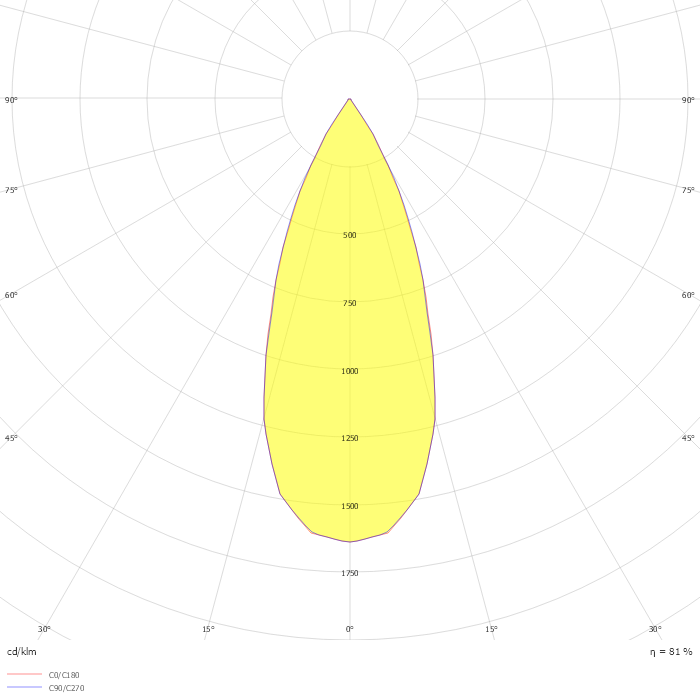

Photometric data
ZIP file
