Product data sheet

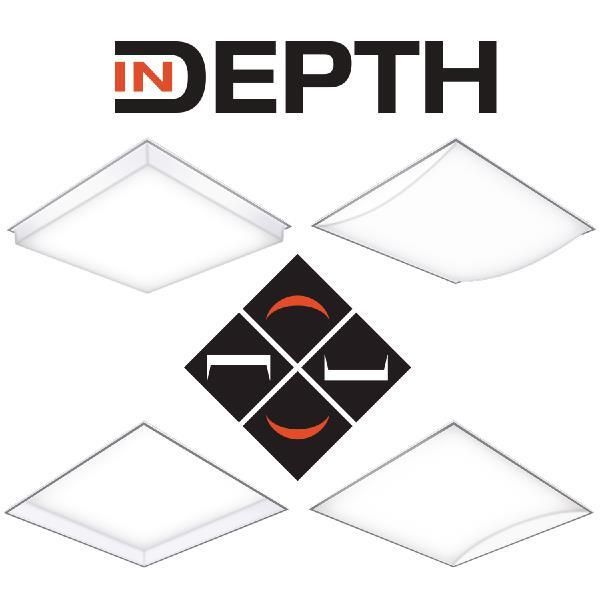

InDepth LED Specification Series

14ID-20-L835-CNV

Cooper Lighting

6 lenses: 2 regress cube & 1 regress curve, 2 drop cube & 1 drop curve, Create ceiling topography with regressed and drop lens options, Regress lens provides optical cut off w/ smooth lens for reduced glare, Extruded aluminum channels form rigid housing for maximum durability, Extruded channel allows field conversion (regress or drop arrangement), Surface or suspension mounting available, High performance efficacy up to 133 lm/W, Flexible – recessed, drywall, surface and suspension mount, Wireless control options available without sacrificing aesthetics

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 16.4 W 1927 lm 118 lm/W 3500 K 80
InDepth LED Specification Series

InDepth LED Specification Series

Light output 1 (integrated)

LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 305 mm

Width: 1219 mm

Height: 51 mm

Adjustability

Fixed

Electric

System power: 16.4 W

Protection

IP: 47

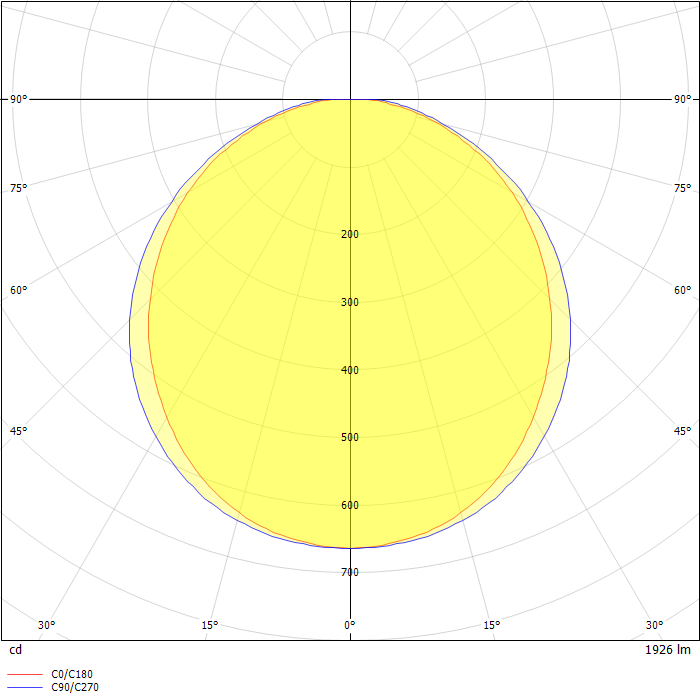

Photometric data

ZIP file
