Product data sheet

IR 9 LED 1500 830 Sensor

153425

Nokalux

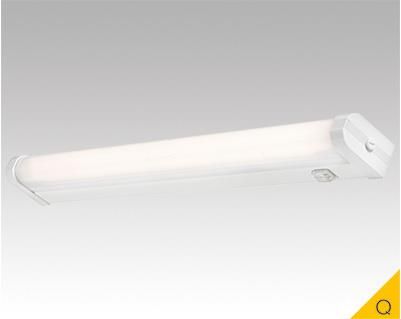

Product image 1: IR 9 LED 1500 830 Sensor
Product image 1: IR 9 LED 1500 830 Sensor

Product image 1: IR 9 LED 1500 830 Sensor



IP
44

Badrumsbelysning med LED. Klass II utförande. Stomme av vitlackerad strängsprutad aluminium RAL 9016. Kupa av opal linjeprismatisk akryl. Montage på vägg. IP 44 gäller vid horisontellt montage. En kabelinföring mitt på armaturens baksida. Utanpåliggande kabel kan användas. Sensor med IR-teknik tänder och släcker vid rörelse. Livslängd: L70 Ta25 50000h (B50) MacAdam 3 SDCM CRI: >80 Klass: IP 44 I CE

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 10.59 W 1123 lm 106 lm/W 3000 K 82
IR 9 LED 1500 830 Sensor

IR 9 LED 1500 830 Sensor

Light output 1 (integrated)

LED

Mounting mode

Wall mounted

Shape and measurements

Length: 77 mm

Width: 648 mm

Height: 44 mm

Adjustability

Fixed

Design

Colour of housing: White

Electric

System power: 10.59 W

Appliance Class: I

Protection

IP: 44

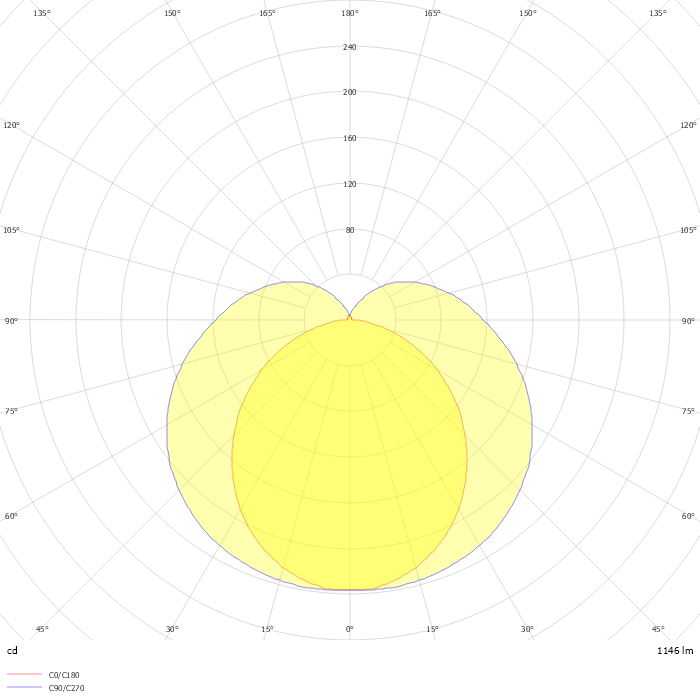

Photometric data

ZIP file

Download file
