Product data sheet

TONIC SPOT LED1800-930 MT3 SP BK

96665970

Thorn Lighting

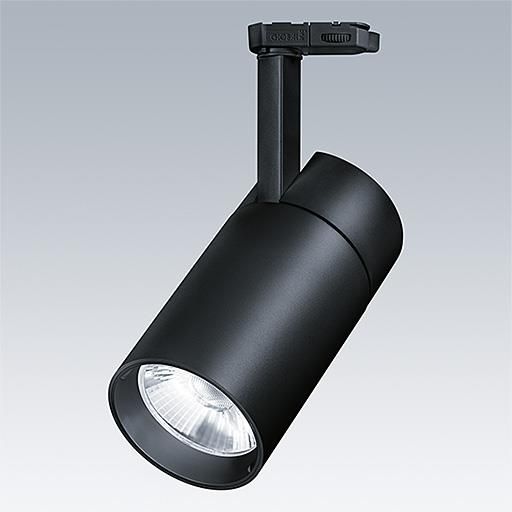

Product image 1: TONIC SPOT LED1800-930 MT3 SP BK
Product image 1: TONIC SPOT LED1800-930 MT3 SP BK

Product image 1: TONIC SPOT LED1800-930 MT3 SP BK



IP
20

An LED spotlight with spot distribution and integral fixed output control gear, for 100-240V, 50/60Hz supply. Track mounted (or surface mounted using adaptor accessory) via global GA69 3-phase adaptor. Class I electrical, IP20. Body: die-cast aluminium, painted black. Driver box: black polycarbonate. Complete with 3000K LED. Spotlight can be rotated through 350° and tilted up to 90°. Light distribution can be altered by changing the lens and / or using external attachments. Dimensions:… [more]

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 19.6 W 1772 lm 90 lm/W 3000 K 90
TONIC SPOT LED1800-930 MT3 SP BK

TONIC SPOT LED1800-930 MT3 SP BK

Light output 1 (integrated)

LED

LOR:100%
Total power:19.6 W

Mounting mode

Ceiling mounted

Shape and measurements

Height: 187 mm

Diameter: 95 mm

Weight: 1.3 kg

Design

Material impression: Aluminum

Colour of housing: Black

Electric

System power: 19.6 W

Voltage: 100-240 V AC

Appliance Class: I

Protection

IP: 20

Designation labels: CE
