Product data sheet

LED Highbay luminaire LN 100W, 90°, IP65, 1-10V dimmable, neutral white

113409

ISOLED

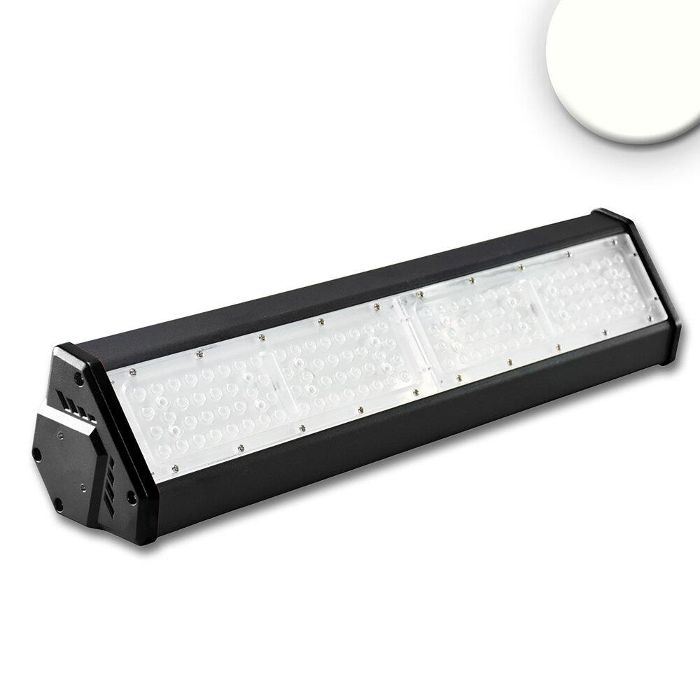

Product image 1: LED Highbay luminaire LN 100W, 90°, IP65, 1-10V dimmable, neutral white
Product image 1: LED Highbay luminaire LN 100W, 90°, IP65, 1-10V dimmable, neutral white

Product image 1: LED Highbay luminaire LN 100W, 90°, IP65, 1-10V dimmable, neutral white



IP
65

LED high-bay lightning LN 100W, 90°, IP65, 1-10V dimmable, neutral white, 11700 lm, 4000K, aluminum, black, 5 years warranty | Dimensioned power: 100 W | Effective power: 100 W | Energy efficiency class: D (EU 2019/2015) | Nominal Voltage: 220 - 240 V AC | Material: aluminum | Surface color: black | Protection class: IP65 | Allowable ambient Temperatures: -20° - 40° C | beam angle: 90° fixed | color temperature: 4000K | color rendering index: 80 (Ra 1-8) | luminous flux: 11700 lm | 1-10V dimmable | suitable for indoor and outdoor use | useful life: 70000 h (L80|B50) | Warranty: 5 years | Special features: two 90° mounting brackets for wall or ceiling mounting are included | FABRICATION: ISOLED 113409

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 100 W 11700 lm 117 lm/W 4000 K 80
LED Highbay luminaire LN 100W, 90°, IP65, 1-10V dimmable, neutral white

LED Highbay luminaire LN 100W, 90°, IP65, 1-10V dimmable, neutral white

Light output 1

1 x LED

Mounting mode

Wall mounted, Ceiling mounted

Shape and measurements

Length: 600 mm

Width: 170 mm

Height: 220 mm

Adjustability

Tiltable

Design

Material impression: Aluminum

Colour of housing: Black

Electric

System power: 100 W

Ballast: ECG

Controller: Dimmable 1..10V

Protection

IP: 65

Designation labels: CE

Other operating numbers

Ambient temperature range: -20...40°C

Photometric data

ZIP file

Download file
