Product data sheet

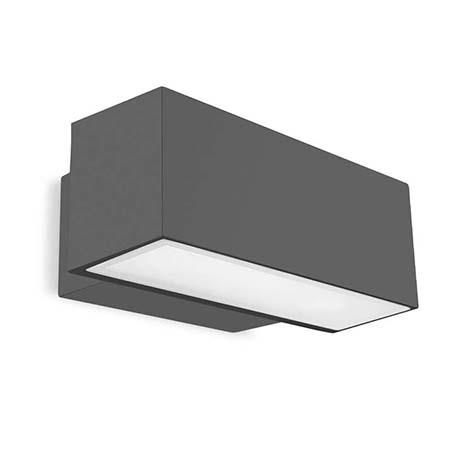

Afrodita LED 300mm Double Emission

05-E048-Z5-CM

LedsC4

LedsC4 Afrodita LED 300mm Double Emission 05-E048-Z5-CMV1 Wall fixture for outdoor use. For uplighting and downlighting. Structure material: Aluminium. Structure finish: Urban grey. Diffuser material: Glass. Diffuser finish: Partly-sandblasted. UV protection. Warranty: 5 Years. Product net weight (Kg): 2.49 Product width or diameter (mm): 300 Product height (mm): 120 Product aperture (mm): 178 Class 1. IP: IP66. IK: IK04. LED. No. of lampholders or LEDs: 1. Driver brand: TCI. Maximum power of light source: 37.6W. Colour temperature: 4000K. Colour rendering index: 80. MacAdam Steps: 3. Hours of life: 50.000h L80B20. UGR: 19.2. Photobiological risk: RG0. % de Flickering: <5%. Real flux (lm): 4216. Real lm/W: 104. Voltage / frequency range: 220-240/50-60Hz. Voltage: 9. Equipment included: Yes. Total power: 40.7. Power factor: 0.95. Dimmable equipment included: DALI-2/PUSH.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 40.7 W 3833 lm 94 lm/W 4000 K 80
Afrodita LED 300mm Double Emission

Afrodita LED 300mm Double Emission

Light output 1

1 x LED

Mounting mode

Wall mounted

Shape and measurements

Length: 300 mm

Width: 170 mm

Height: 120 mm

Adjustability

Fixed

Electric

System power: 40.7 W

Appliance Class: I

Protection

IP: 66

IK: 04

Photometric data

ZIP file
