Product data sheet

M - LED LINE HE 1 x 25,2W DIM5

23350 0005

Delta Light

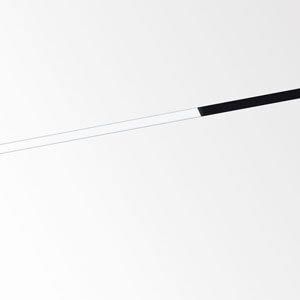

Product image 1: M - LED LINE HE 1 x 25,2W DIM5
Product image 1: M - LED LINE HE 1 x 25,2W DIM5

Product image 1: M - LED LINE HE 1 x 25,2W DIM5



IP
20

Luminaire, low voltage systems low voltage system mounted (indoor use) from Deltalight, named M - LED LINE HE 1 x 25,2W DIM5, available in the colour(s): black. This luminaire can be used with the following 48V magnetic lighting system(s): SHIFTLINE M26H - PROFILE, SHIFTLINE M26H + SBL, SHIFTLINE M26L - PROFILE, SPLITLINE M20 - PROFILE, SPLITLINE M20 ST - PROFILE. This luminaire is equipped with LED flex 25,2W / CRI>90 (R9: 60) / 3000K / 3000lm with build-in converter to operate on a voltage of 48V-DC. Dimming protocol: DALI. Light distributor: opal diffuser.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 29 W 3000 lm 103 lm/W 3000 K 90
M - LED LINE HE 1 x 25,2W DIM5

M - LED LINE HE 1 x 25,2W DIM5

Light output 1

1 x LED

Mounting mode

Ceiling mounted, Contact rail, Wall mounted, Pendant, Wall recessed

Shape and measurements

Length: 1210 mm

Width: 18 mm

Height: 1 mm

Weight: 0.7 kg

Electric

System power: 29 W

Appliance Class: II

Protection

IP: 20

Designation labels: CE

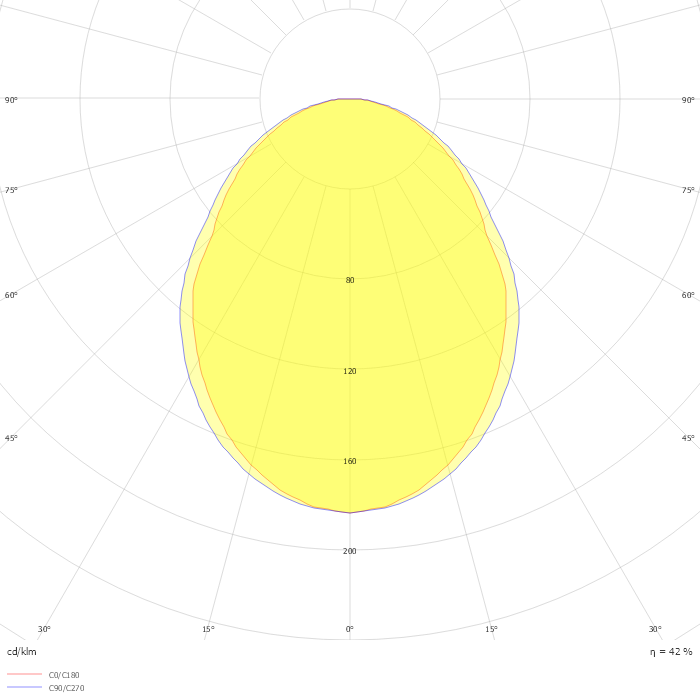

Photometric data

ZIP file

Download file
