Product data sheet

LD48 1.1W 350mA OB

LD48-C1-350-OB

LightGraphix

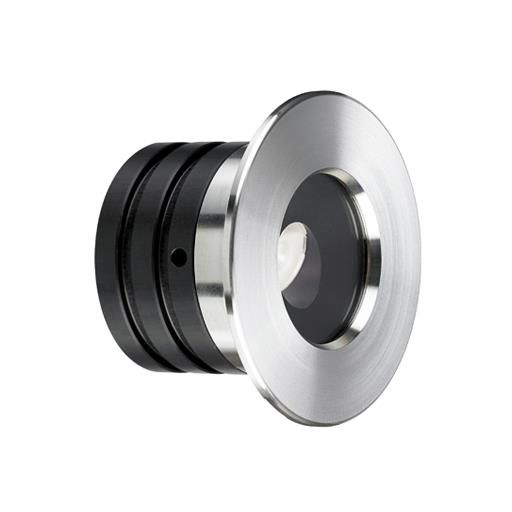

Product image 1: LD48 1.1W 350mA OB
Product image 1: LD48 1.1W 350mA OB

Product image 1: LD48 1.1W 350mA OB



IP
67

LD48 Ø63mm Recessed Wall Light. Constant Current. 1.1W 350mA 12° x 36° Oval beam. The LD48 has been updated with the latest LED technology and fitted with our new optics. The lens assembly is recessed and inclined by 20° for a floor wash illumination with minimal glare. This is a high-quality fitting with a machined 316 stainless steel bezel and black anodized body, for interior and exterior use. It has no visible fixings and the glass is fixed with a hidden gasket, so no unsightly glue line is visible. A choice of beam angles and colour temperatures are available.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 1.1 W 106 lm 96 lm/W 3000 K 93
LD48 1.1W 350mA OB

LD48 1.1W 350mA OB

Light output 1 (integrated)

LED

Mounting mode

Wall recessed

Shape and measurements

Height: 38 mm

Diameter: 63 mm

Adjustability

Fixed

Design

Material impression: Matt, Bronze, Glass, Brass, Gloss, Stainless steel

Colour of housing: Black, White, Anthracite / graphite, Silver gray

Electric

System power: 1.1 W

Controller: Dimmable 0..10V, Dimmable 1..10V, DMX, DALI

Appliance Class: III

Protection

IP: 67

Designation labels: CE

Other operating numbers

Ambient temperature range: -20...45°C

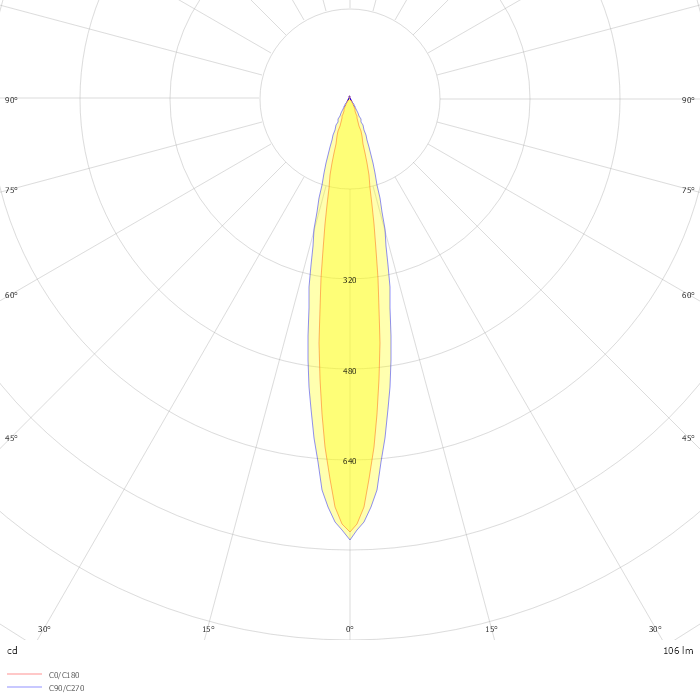

Photometric data

ZIP file

Download file
