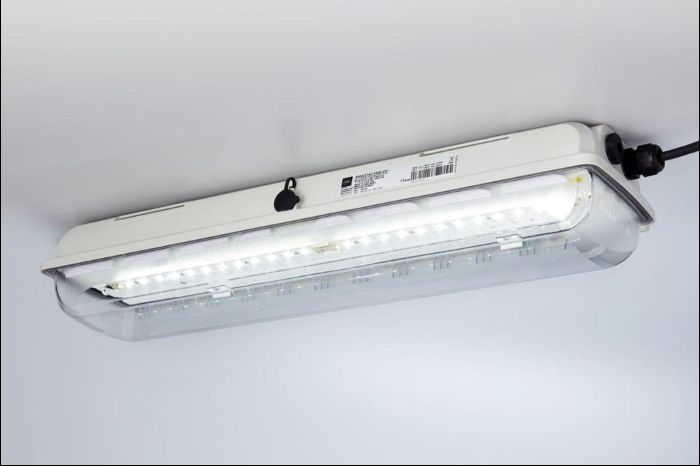

Linear luminaire With LED GRP Explosion-protected Type: 6402/4148-6100-150-0110-20 -8400 Enclosure material: Polyester resin Translucent cover material: Polycarbonate Version: Standard Enclosure colour: Light grey (RAL 7035) Number of lamps: 1 Lamp wattage: 42 W Light distribution: 120°x120° with diffusing glass Luminous flux: 5.810 lm Luminaire efficacy: 138 lm/W Colour temperature: 4.000 K LED Service life: L90B50 ≥ 100.000 h Dimensions (L x W x H): 1.310 x 184 x 125 mm AC rated operational voltage: 100,00 - 240,00 V DC rated operational voltage: 110,00 - 250,00 V Application range (zones): 2 , 21, 22 Gas explosion protection: II 3 G Ex ec IIC T4 Gc Dust explosion protection: II 2 D Ex tb op is IIIC T100 °C Db Min. ambient temperature: -40 °C Max. ambient temperature: +60 °C Impact strength (IK code): IK10 (IEC 62262) Diffuser: With diffuser Ballast: VG Luxtronic 80 W 300 mA Threaded plate: 1x SS430 stainless steel Drilled holes: 2 x M25 Without Screw connections: Can be ordered as accessories Stopping plug: Can be ordered as accessories Languages of the documentation: German English For further information, see: r-stahl.com WebCode 6402C
