Product data sheet

O66-W1225 LED 5000 830 ASY

Glamox

Light source LED 1300 - 5200 lumen out Colour temperature 3000/4000 K, CRI Ra 80, MacAdams 3 RGB-W on request Driver Fixed output (HF) or DALI dimmable. Body material & colour Body in extruded and die-cast aluminium. Double layer polyester powder coated paint finish. Available in two different colours; aluminium grey (RAL 9006) or anthracite (close to RAL 7024). Tempered front glass. Silicone gasket. Screws made of stainless steel. Mounting On wall, ceiling or solid ground by use of brackets that have to be ordered separately. The luminaire can both be single and continuous mounted and is equipped with a goniometric system, permitting continuous adjustments at constant steps of 5º. Accessories Wall brackets of galvanized and painted steel. Connection 2 x M20 cable glands (cable Ø8 - 12 mm) on connection box at the backside of the luminaire. 3/5 pole 6 mm² screw terminal block. Outdoor use requires suitable flexible cables assuring the water tightness of the cable gland. Optics Medium beam (MB). Narrow beam (NB).

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 56 W 5000 lm 89 lm/W 3000 K 80
O66-W1225 LED 5000 830 ASY

O66-W1225 LED 5000 830 ASY

Light output 1 (integrated)

LED

Mounting mode

Wall mounted

Shape and measurements

Length: 1225 mm

Width: 104 mm

Height: 87 mm

Adjustability

Tiltable

Design

Colour of housing: Anthracite / graphite, Silver gray

Electric

System power: 56 W

Protection

IP: 66

IK: 09

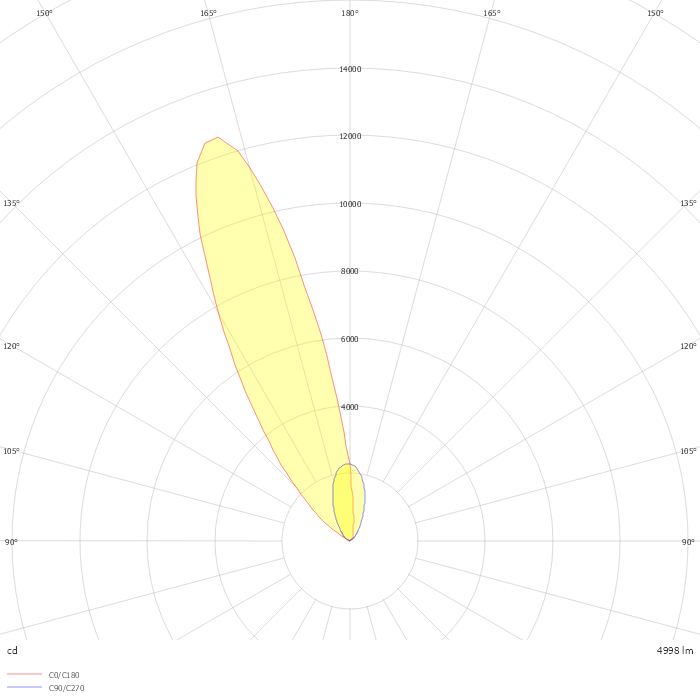

Photometric data

ZIP file
