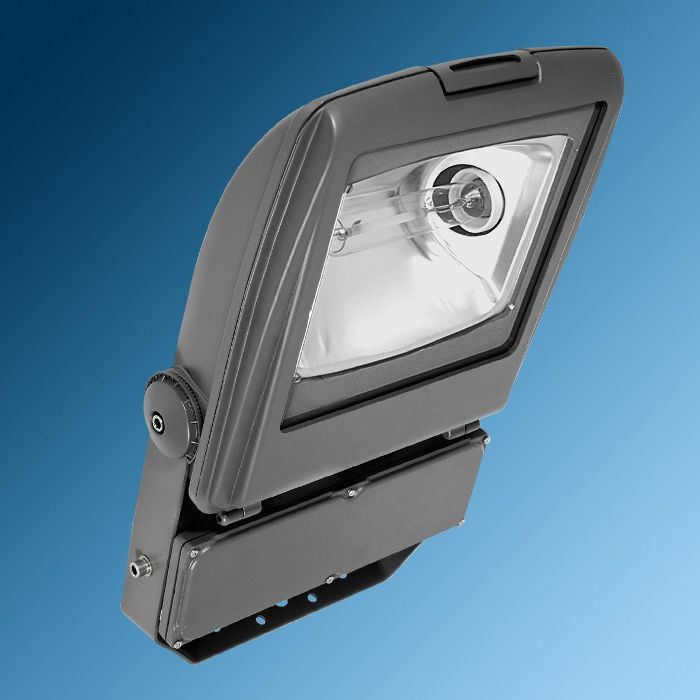

VEGA luminaire is state of the art Mazinoor design for flood light and street light applications. Durability, various choices of reflectors to suit difference lighting applications, the aerodynamic shape, and the various mounting possibility on the ground, walls, pole, etc. are among the greatest advantages of VEGA. STANDARDS: Manufactured to comply with EN 60598 / BS 4533, CE marked Application:Depending upon the choice of reflector matching the lighting application, VEGA would be suitable for lighting courtyards, athletic facilities, displays, advertisment billboards, parking lots, buildings, facades and roadways.
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
1 x High pressure sodium vapour lamp | 400 W | 48000 lm | 76 lm/W | 1690 K | 36 |
Mounting mode
Pole top mounted
Shape and measurements
Length: 789 mm
Width: 475 mm
Height: 173 mm
Adjustability
Tiltable
Electric
System power: 430 W
Protection
IP: 66

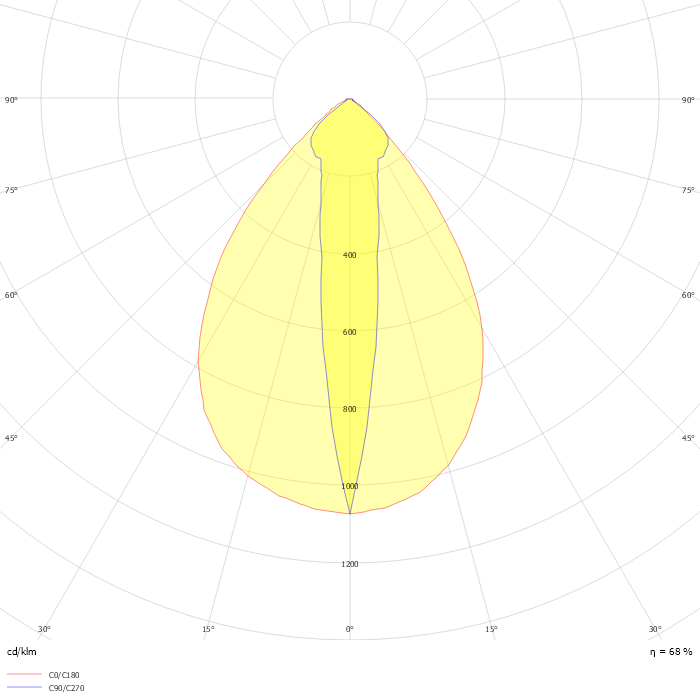

Photometric data
ZIP file
