Product data sheet

BTECM L13 LE3

BTEC Emergency

Dextra

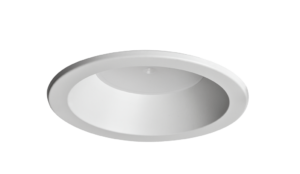

Product image 1: BTECM L13 LE3
Product image 1: BTECM L13 LE3

Product image 1: BTECM L13 LE3

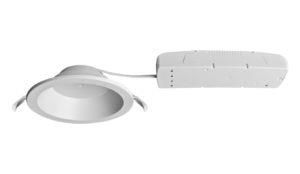

Product image 2: BTECM L13 LE3

Product image 2: BTECM L13 LE3



Product image 3: BTECM L13 LE3

Product image 3: BTECM L13 LE3



IP
20

Btec Large Downlighter - Ø220mm, IP40 Recessed downlighter with spun aluminium housing, spring steel retaining clips and high transmission polycarbonate diffuser. Options: LE3 - Lithium Emergency (493 lumen output) LS3 - Lithium Selftest LA3 - Lithium Autotest CB - Please specify 50v, 110v or 230v when ordering S - Switch Dimming D - Digital Dimming (DSI) A - Digital Addressable Lighting Interface (DALI) C - Bi-Level Dimming (Corridor Function)

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 3 W 476 lm 159 lm/W 4000 K 80
BTECM L13 LE3

BTECM L13 LE3

Light output 1 (integrated, emergency)

LED

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 9.1 W 1103 lm 121 lm/W 4000 K 80
BTECM L13 LE3

BTECM L13 LE3

Light output 2 (integrated)

LED

Mounting mode

Ceiling recessed

Shape and measurements

Height: 65 mm

Diameter: 167 mm

Adjustability

Fixed

Electric

System power: 12.1 W

Ballast: ECG

Information regarding emergency functions

Supplementary emergency lighting

Emergency sign: N/A

Protection

IP: 20

Designation labels: CE

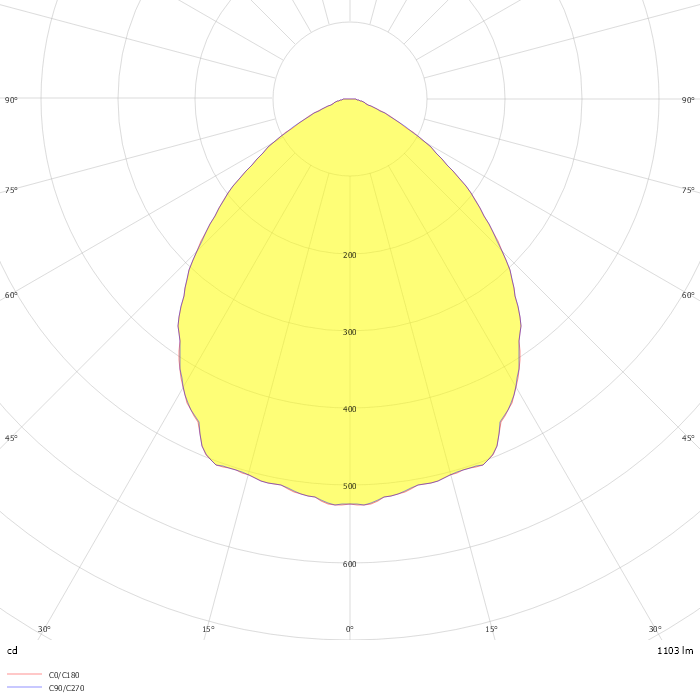

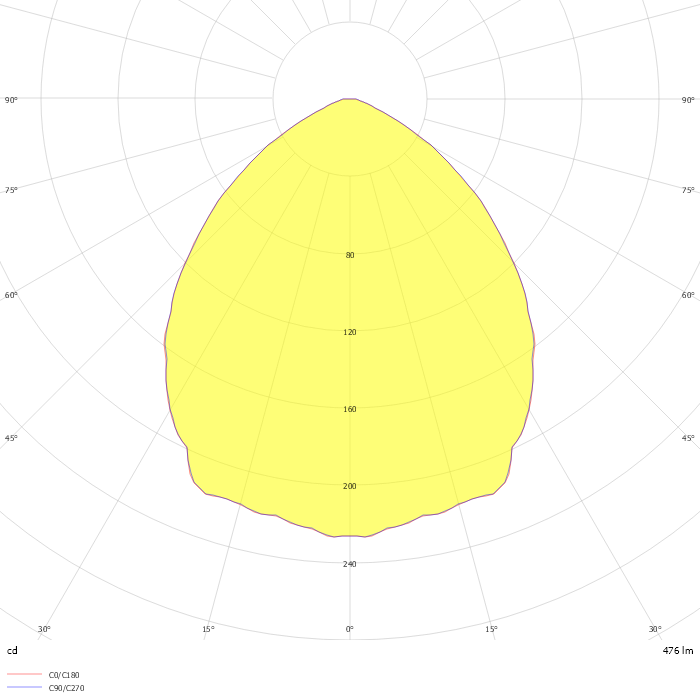

Photometric data

ZIP file

Download file
