Product data sheet

Sense Basic 300x600 White 2220lm 4000K Ra>80 On/Off

7021982121470

SG Armaturen

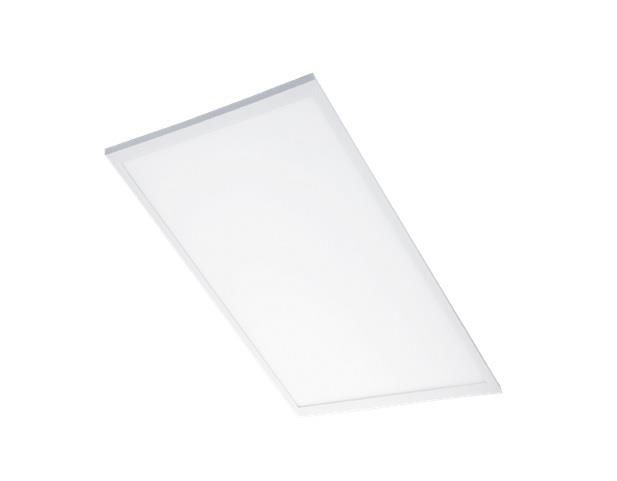

The Sense Basic 300x600 LED panel is ideal both for new installations and remodelling projects. It can directly replace 2x14W T5 and 2x18W T8 luminaires. It has a lightweight steel housing and is based on backlight, yet it is only 35 mm height. High quality non-yellowing PMMA micro prismatic front optics. Easy tool-free installation, twist connector between driver and panel and junction box with automatic strain relief for cables or plastic tubing. Light distribution Direct Light technic LED 20W 4000K Ra>80 SDCM 3 L90/B50 >50,000 hrs Control/Dimming On/Off Protection Class II IP20 Materials and finish Housing: Steel Colour: White (RAL 9003) Optics: PMMA (Acrylate) Mounting/Connection Recessed, Indoor Screwless terminal block Max. luminaires per circuit breaker: B10: 38, B16: 60, C10: 57, C16: 91

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 20 W 2220 lm 111 lm/W 4000 K 80
Sense Basic 300x600 White 2220lm 4000K Ra>80 On/Off

Sense Basic 300x600 White 2220lm 4000K Ra>80 On/Off

Light output 1

1 x LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 595 mm

Width: 295 mm

Height: 36 mm

Adjustability

Fixed

Design

Colour of housing: White

Electric

System power: 20 W

Appliance Class: II

Protection

IP: 20

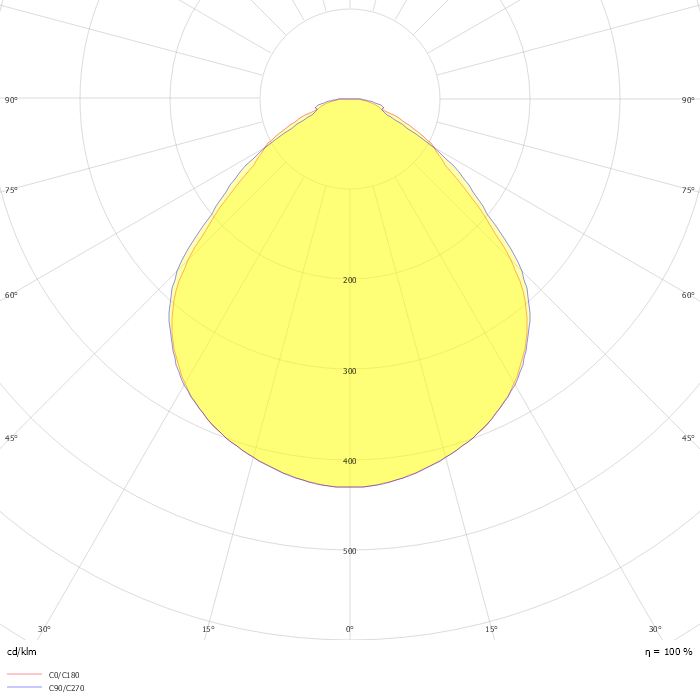

Photometric data

ZIP file
