Product data sheet

AVENIDA HERITAGE LENS LED P ED 35W 4000lm 3000K IP66 O18 - for pedestrian zones gray II

130332.5L072.011

LUG

Product image 1: AVENIDA HERITAGE LENS LED P ED 35W 4000lm 3000K IP66 O18 - for pedestrian zones gray II
Product image 1: AVENIDA HERITAGE LENS LED P ED 35W 4000lm 3000K IP66 O18 - for pedestrian zones gray II

Product image 1: AVENIDA HERITAGE LENS LED P ED 35W 4000lm 3000K IP66 O18 - for pedestrian zones gray II



IP
66

IK
10

Stylized park luminaire, based on the architecture of AVENIDA LED luminaires and referring in character to classic decorative luminaires. Mounting: on pillar ø60/76mm, with mounting bracket (included) Body: high pressure die-cast aluminum Lateral Surface Wind Exposed: 0,111 m² Power: 220-240V 50/60Hz Lifetime (L90B10); 100 000 h Available on request: DALI, 10kV surge protection, NTC Other remarks: the pole is not part of the luminaire Warranty: 5 years Application: cycle paths, avenues, sidewalks, parks, residential, public spaces, playgrounds, promenade, residential area roads Type of optics: O18 - for pedestrian zones

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 35 W 4000 lm 114 lm/W 3000 K 70
AVENIDA HERITAGE LENS LED P ED 35W 4000lm 3000K IP66 O18 - for pedestrian zones gray II

AVENIDA HERITAGE LENS LED P ED 35W 4000lm 3000K IP66 O18 - for pedestrian zones gray II

Light output 1 (integrated)

LED

Mounting mode

Pole top mounted

Shape and measurements

Length: 561 mm

Width: 561 mm

Height: 570 mm

Adjustability

Fixed

Design

Colour of housing: Silver gray

Electric

System power: 35 W

Appliance Class: II

Protection

IP: 66

IK: 10

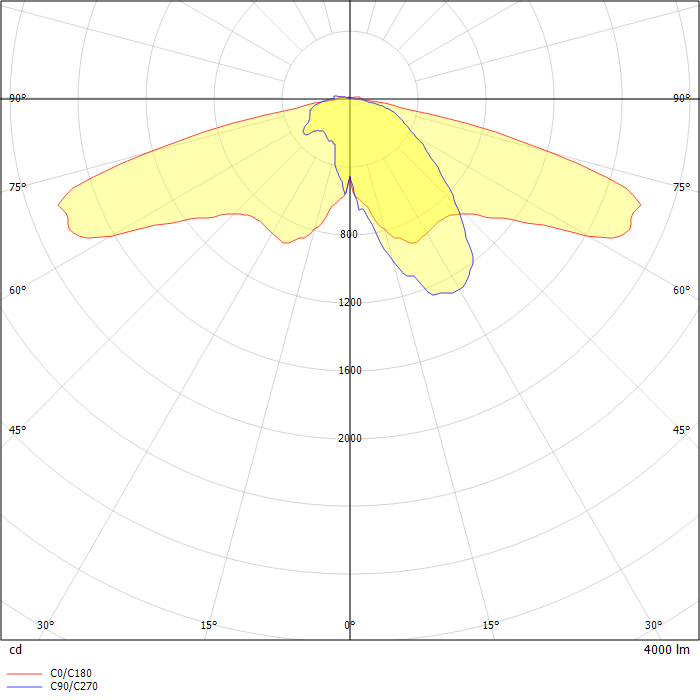

Photometric data

ZIP file
