Housing: in glass sphere nylon, shatterproof, frame in die-cast aluminium. Diffuser: matt glass, resistant to thermal shock and impact (UNI EN 12150-1:2001). Coating: pre-treatment of metal surface, polyester powder coating to ensure resistance to corrosion and salt spray fogs, UV stabilised. Wiring: power supply 220-240V 50/60Hz with external transformer acc. 179. Cable with insulation class 3. Photobiological risk: exempt risk group according to EN62471. : EN60598-1. With degree of protection according to EN60529. Laboratory tests: the luminaire passed the static load resistance test (EN 60598-2-13) with an applied weight of 40KN equal to 2000 kg. Equipment: silicone and EPDM rubber sealing gasket. Warnings: driveway lamp. Keep clear.
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 0.6 W | 28 lm | 47 lm/W | 4000 K | 80 |
Mounting mode
Wall recessed
Shape and measurements
Length: 95 mm
Width: 95 mm
Height: 87 mm
Adjustability
Fixed
Design
Colour of housing: Anthracite / graphite
Electric
System power: 0.6 W
Appliance Class: III
Protection
IP: 67
IK: 08
Designation labels: CE

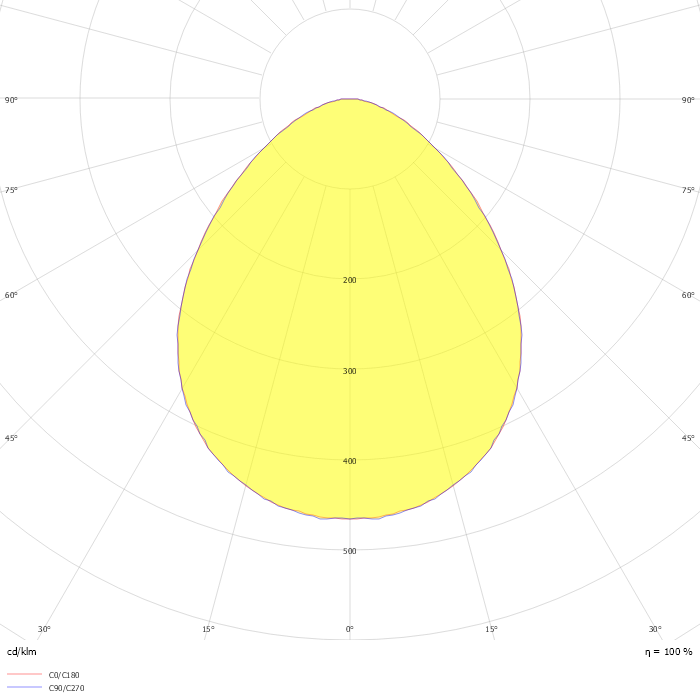

Photometric data
ZIP file
