Product data sheet

RUBIN LOOK LED 3900 PLX E 34 830 / 600X600

19.4360.7411.34

LUXIONA

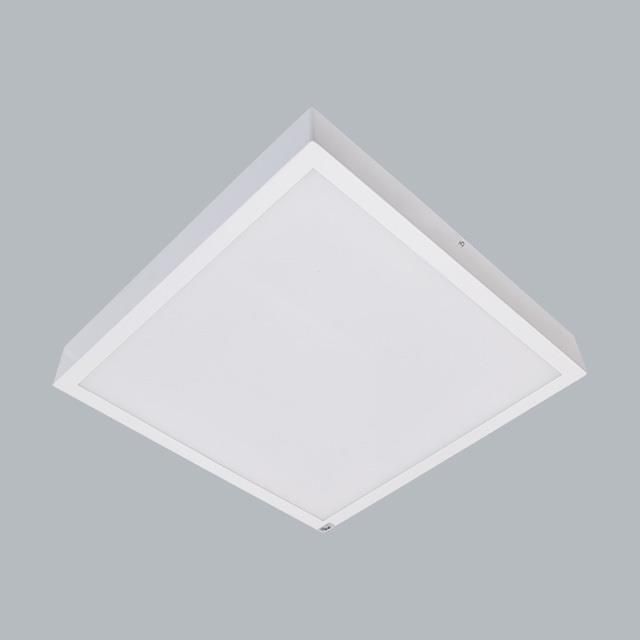

Product image 1: RUBIN LOOK LED 3900 PLX E 34 830 / 600X600
Product image 1: RUBIN LOOK LED 3900 PLX E 34 830 / 600X600

Product image 1: RUBIN LOOK LED 3900 PLX E 34 830 / 600X600



IP
40

IK
04

Indoor luminaire. Assembly: surface mounted on ceiling. The body material is steel sheet. Colour - RAL 9016 (white). Luminaire dimensions: 595 x 595 x 55 mm. Weight 4,1 kg. Diffuser: PLX (PMMA opal). The efficiency of the optical system is 73,03%. Beam angle: (C0-C180) / (C90-C270) - 102,8° / 102,8°. Light source type: LED. Colour of the light 3000 K. SDCM=3. CRI>80. Lifetime of LED sources: 100000 (1) / 147000 (2) h L80/B10 (1) / L70/B50 (2). Luminaire luminous flux: 2766 lm. Power of luminaire: 21,7 W. Luminaire's light efficiency: 127,5 lm/W. Driver: standard on/off (E). Voltage 220..240 V, 50..60 Hz. Power factor cosφ: >0,95. Circuit load capacity: 30 (B10), 48 (B16), 43 (C10), 70 (C16). Operating temperature range: 5 ÷ 30° C. Protection degree: IP40. Impact resistant: IK04. Protection against electric shock: I. Photobiological risk class (IEC/EN 62471): RG0.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
3 x LED 7.233 W 1263 lm 175 lm/W 3000 K 80
RUBIN LOOK LED 3900 PLX E 34 830 / 600X600

RUBIN LOOK LED 3900 PLX E 34 830 / 600X600

Light output 1

3 x LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 595 mm

Width: 595 mm

Height: 55 mm

Adjustability

Fixed

Design

Colour of housing: White

Electric

System power: 21.7 W

Appliance Class: I

Protection

IP: 40

IK: 04

Other operating numbers

Ambient temperature range: 5...30°C

Photometric data

ZIP file

Download file
