Product data sheet

ARTSHAPE ROUND LED SMALL FULL SUSPENDED 6000 PLX E 34 840 / S-1,5M

19.4013.1321.34

LUXIONA

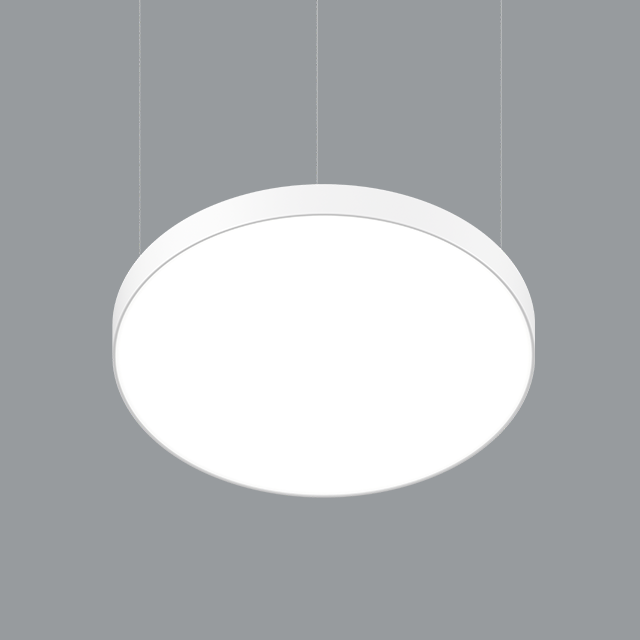

Product image 1: ARTSHAPE ROUND LED SMALL FULL SUSPENDED 6000 PLX E 34 840 / S-1,5M
Product image 1: ARTSHAPE ROUND LED SMALL FULL SUSPENDED 6000 PLX E 34 840 / S-1,5M

Product image 1: ARTSHAPE ROUND LED SMALL FULL SUSPENDED 6000 PLX E 34 840 / S-1,5M



IP
20

IK
04

Indoor luminaire. Assembly: surface mounted on slings. The body material is aluminum. Colour - RAL 9016 (white). Luminaire dimensions: Ø650 x 85 mm. Weight 5,85 kg. Diffuser: PLX (PMMA opal). The efficiency of the optical system is 73,54%. Beam angle: (C0-C180) / (C90-C270) - 111,2° / 114,2°. Light source type: LED. Colour of the light 4000 K. SDCM=3. CRI>80. Lifetime of LED sources: 60000 h L80/B10. Luminaire luminous flux: 4377 lm. Power of luminaire: 47 W. Luminaire's light efficiency: 93,1 lm/W. Driver: standard on/off (E). Voltage 220..240 V, 50..60 Hz. Power factor cosφ: >0,95. Circuit load capacity: 16 (B10), 26 (B16), 23 (C10), 37 (C16). Operating temperature range: 0 ÷ 30° C. Protection degree: IP20. Impact resistant: IK04. Protection against electric shock: I. Photobiological risk class (IEC/EN 62471): RG0. These luminaires are characterised by tightly closed chamber of LED light sources (IP65) thanks to this impurities are not visible on the diffuser for a long time of exploitation. Temperature range for storage and transport from 0° C to 40° C. The luminaire can be made in CLO (Constant Lumen Output) version. Please check in the data sheet and installation instructions whether installation accessories are required.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 47 W 5952 lm 127 lm/W 4000 K 80
ARTSHAPE ROUND LED SMALL FULL SUSPENDED 6000 PLX E 34 840 / S-1,5M

ARTSHAPE ROUND LED SMALL FULL SUSPENDED 6000 PLX E 34 840 / S-1,5M

Light output 1

1 x LED

Mounting mode

Pendant

Shape and measurements

Height: 85 mm

Diameter: 650 mm

Adjustability

Fixed

Design

Colour of housing: White

Electric

System power: 47 W

Appliance Class: I

Protection

IP: 20

IK: 04

Other operating numbers

Ambient temperature range: 0...30°C

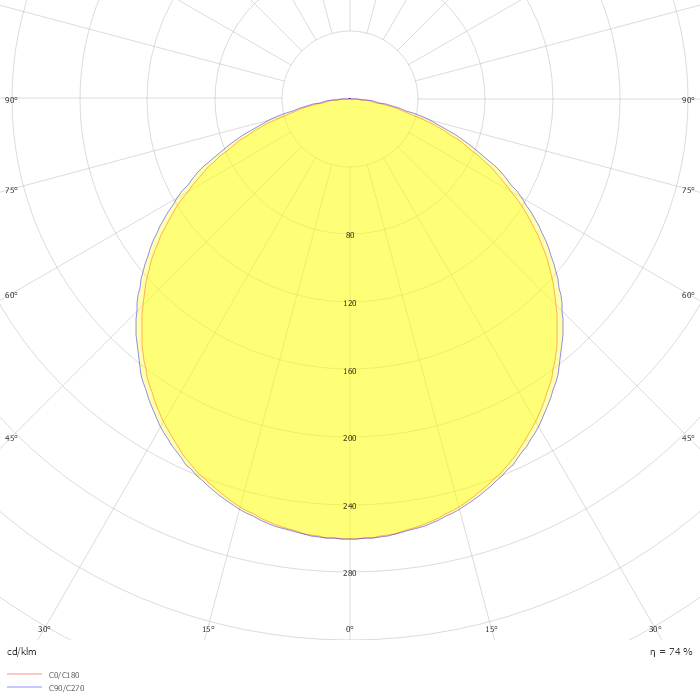

Photometric data

ZIP file
