Product data sheet
HALOSCAN CLIP HP 92735
23120 9230
Delta Light
Luminaire, ceiling recessed or ceiling surface mounted (indoor use) from Deltalight, named HALOSCAN CLIP HP 92735, available in the colour(s): black, white. For recessed mounting, a round opening with a diameter of 51 mm is needed and a min. depth for recessing of 40 mm. This luminaire is equipped with LED array 11,6W / CRI>90 (R9: 60) / 2700K / 1458lm with an optional driver, suitable for currents of 350mA. Light distributor: lens 35°.
| Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 12 W | 1458 lm | 122 lm/W | 2700 K | 90 |
| 1 x LED | 12 W | 1458 lm | 122 lm/W | 2700 K | 90 |
| 1 x LED | 12 W | 1458 lm | 122 lm/W | 2700 K | 90 |
| 1 x LED | 12 W | 1458 lm | 122 lm/W | 2700 K | 90 |
| 1 x LED | 12 W | 1458 lm | 122 lm/W | 2700 K | 90 |
| 1 x LED | 12 W | 1458 lm | 122 lm/W | 2700 K | 90 |
Mounting mode
Ceiling mounted
Shape and measurements
Height: 1 mm
Diameter: 58 mm
Electric
System power: 12 W
Appliance Class: II
Protection
IP: 20
Designation labels: CE

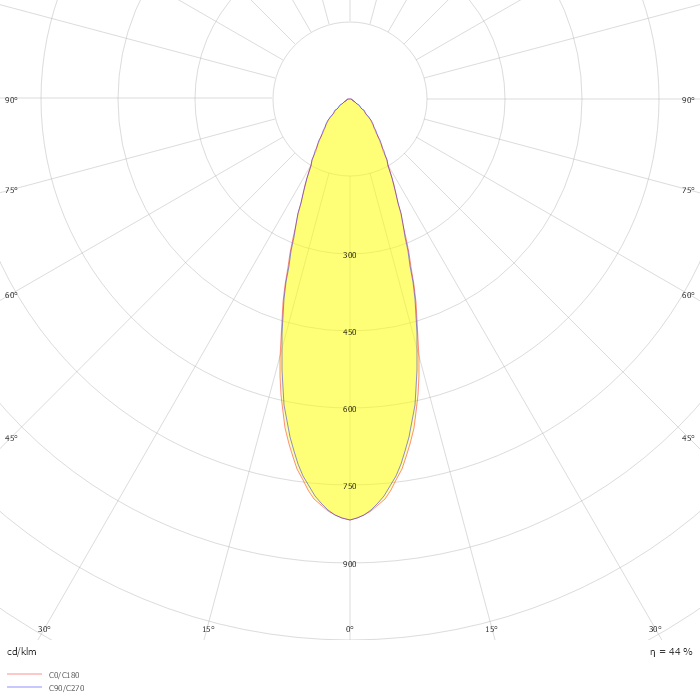

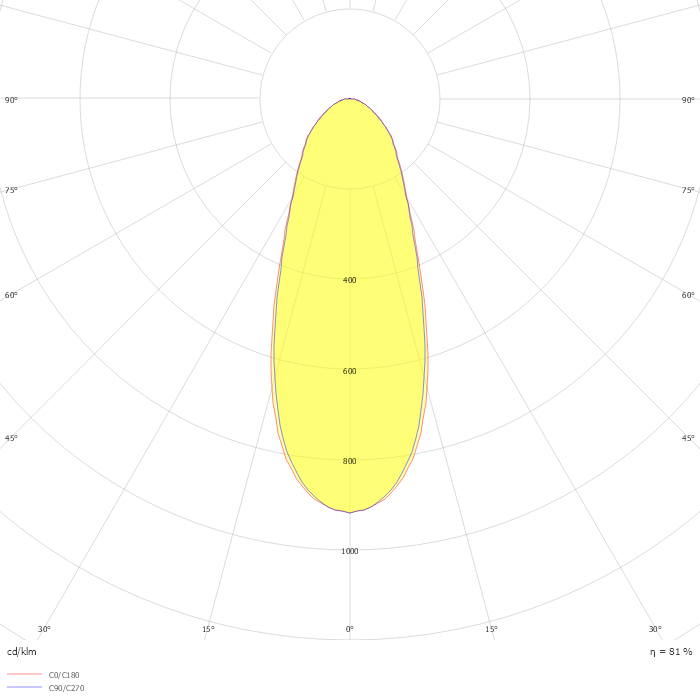

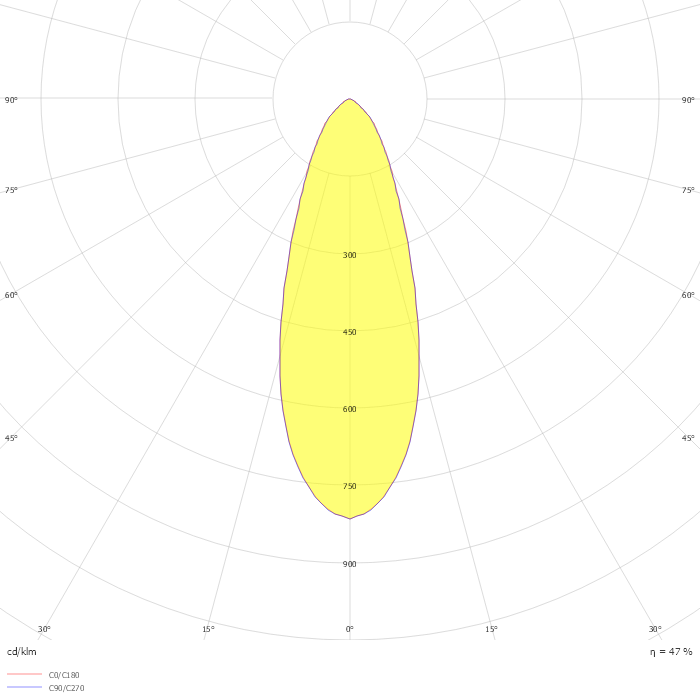

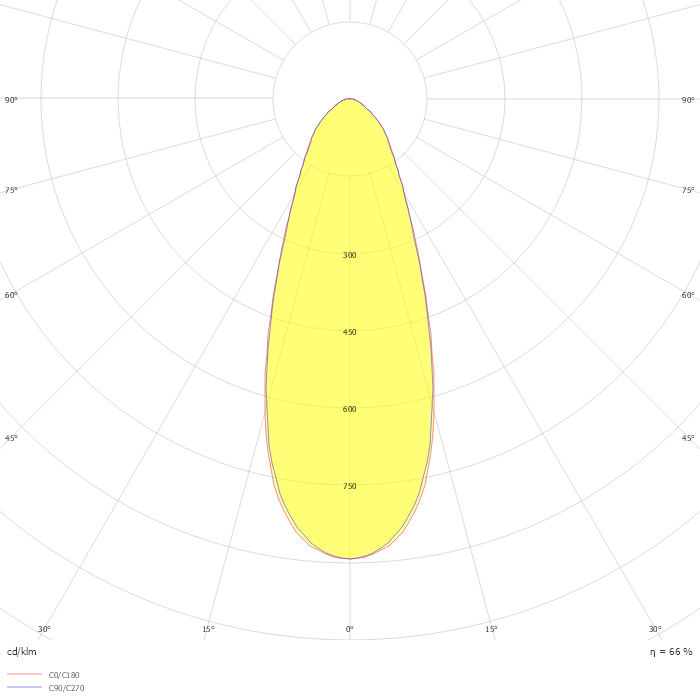

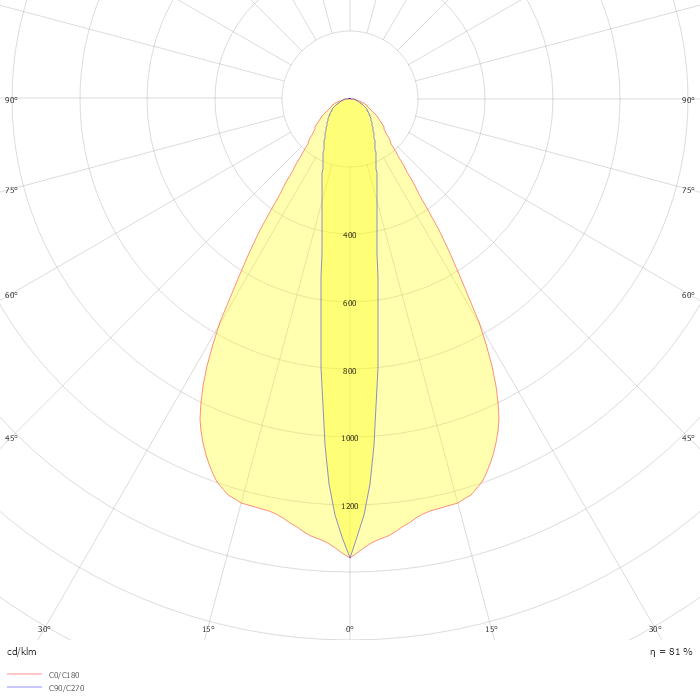

Photometric data
ZIP file
