Product data sheet

Eros 3000K 12W Sensor White

7504103

Westal

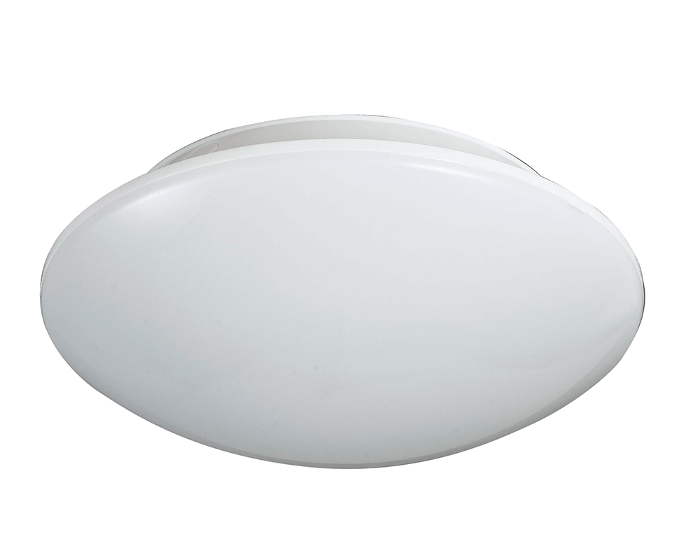

Product image 1: Eros 3000K 12W Sensor White
Product image 1: Eros 3000K 12W Sensor White

Product image 1: Eros 3000K 12W Sensor White



IP
44

IK
09

A more simple ceiling- and wall luminaire equipped with a LED unit. Made of polycarbonate with opal glare protection. Comes with quick-connect terminal block and double knockouts for surface-mounted cable and forwarding.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 12 W 1076 lm 90 lm/W 3000 K 80
Eros 3000K 12W Sensor White

Eros 3000K 12W Sensor White

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 255 mm

Width: 255 mm

Height: 90 mm

Adjustability

Fixed

Electric

System power: 12 W

Appliance Class: II

Protection

IP: 44

IK: 09

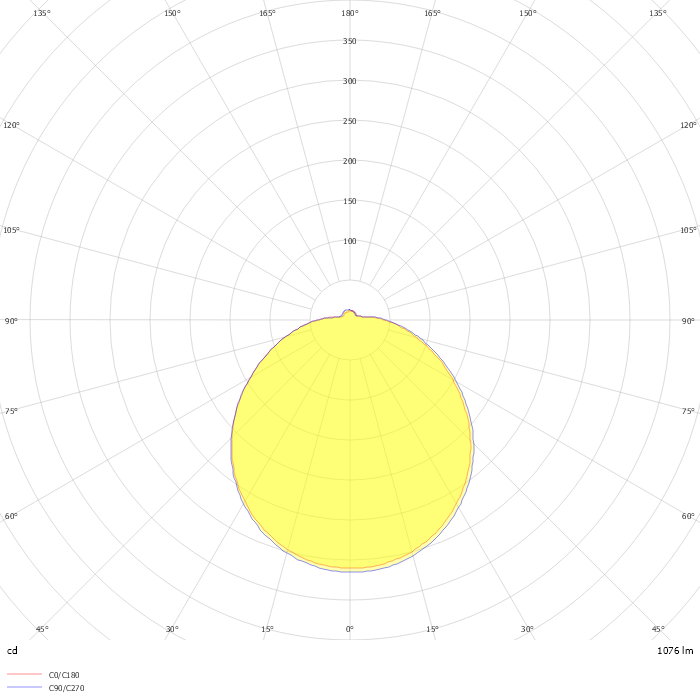

Photometric data

ZIP file

Download file
