Product data sheet

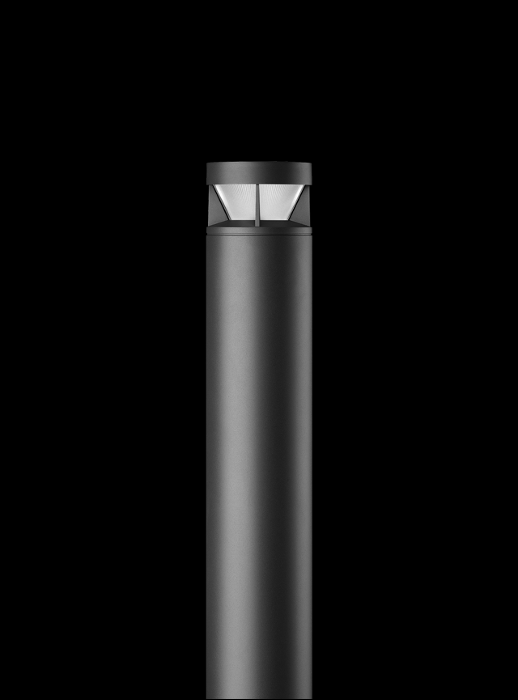

KTY234 [R65] IP66:LED-3/9W/3K

114-9085

we-ef

IP66, Class I. IK10. Marine-grade, all-aluminium construction. 5CE superior corrosion protection including PCS hardware. Polycarbonate lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Two-sided[more]

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
3 x LED 3 W 430 lm 81 lm/W 3000 K 80
KTY234 [R65] IP66:LED-3/9W/3K

KTY234 [R65] IP66:LED-3/9W/3K

Light output 1

3 x LED

LOR:69%
Total flux:892 lm
Total power:11 W

Mounting mode

Standing / Bollard

Shape and measurements

Height: 1014 mm

Diameter: 180 mm

Weight: 9 kg

Electric

System power: 11 W

Appliance Class: I

Protection

IP: 66
