Product data sheet
iMAX II ROUND ADJUSTABLE CL 9306
24220 9310
Delta Light

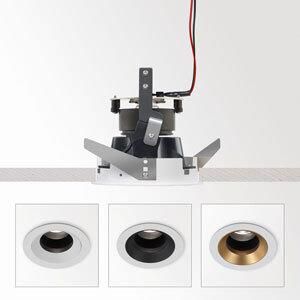

Luminaire, ceiling recessed (indoor use) from Deltalight, named iMAX II ROUND ADJUSTABLE CL 9306, available in the colour(s): black, white. For recessed mounting, a round opening with a diameter of 98 mm is needed and a min. depth for recessing of 110 mm. This luminaire is equipped with LED array 2-3,2W / CRI>90 / 3000K / 229-319lm with an optional driver, suitable for currents of 700mA to 1050mA. Light distributor: lens 6°.
| Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 3 W | 319 lm | 106 lm/W | 3000 K | 90 |
| 1 x LED | 2 W | 229 lm | 114 lm/W | 3000 K | 90 |
| 1 x LED | 3 W | 319 lm | 106 lm/W | 3000 K | 90 |
| 1 x LED | 2 W | 229 lm | 114 lm/W | 3000 K | 90 |
Mounting mode
Ceiling recessed
Shape and measurements
Height: 2 mm
Diameter: 106 mm
Weight: 0.4 kg
Electric
System power: 2-3 W
Appliance Class: II
Protection
IP: 54
Designation labels: CE

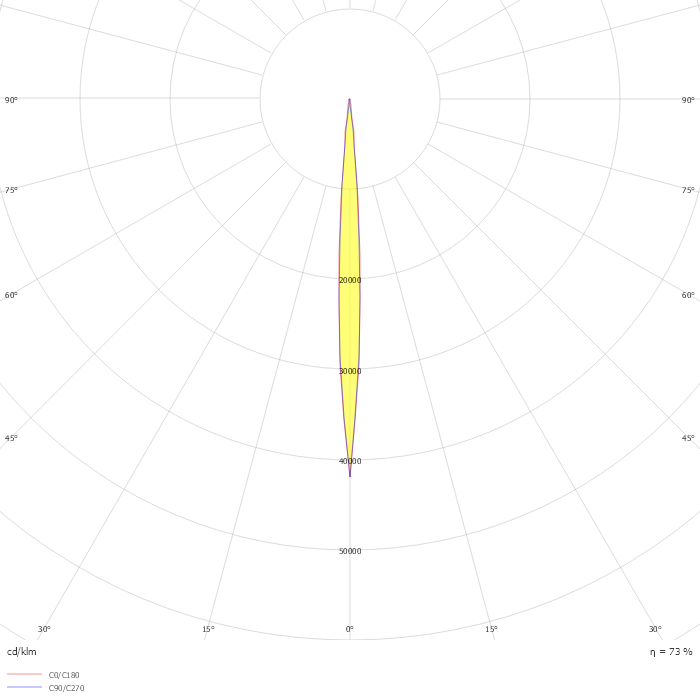

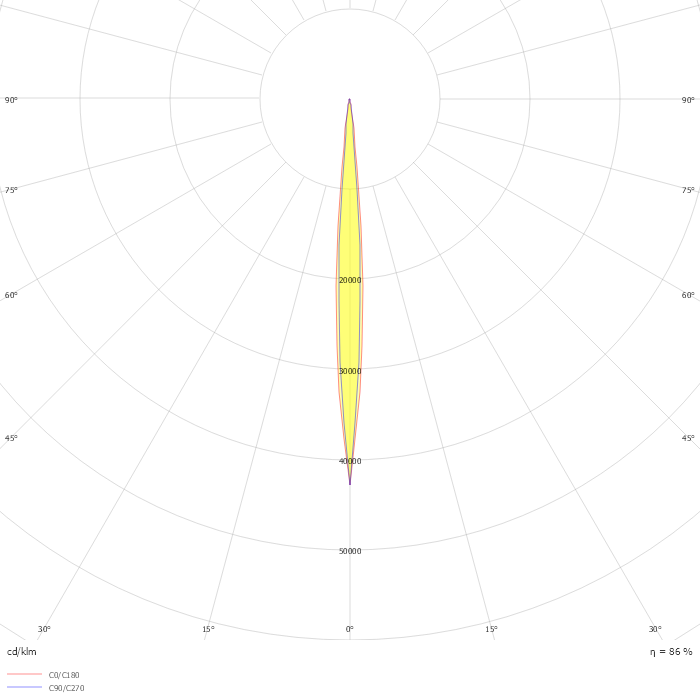

Photometric data
ZIP file
