Product data sheet

RACER MINI 826 11500 HF 740 MBA

Glamox

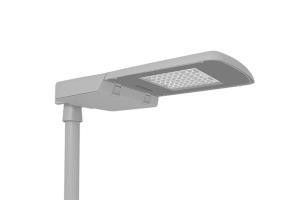

Product image 1: RACER MINI 826 11500 HF 740 MBA
Product image 1: RACER MINI 826 11500 HF 740 MBA

Product image 1: RACER MINI 826 11500 HF 740 MBA



IP
66

IK
08

Light source: LED Lumen out: 11500 CRI: 70 Colour temperature: 4000 Total effect: 83 Lumen per watt: 139 Optic: MBA Driver: HF Main body material: Aluminium/Steel IP class: 66 IK class: 8

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 83 W 11500 lm 139 lm/W 4000 K 70
RACER MINI 826 11500 HF 740 MBA

RACER MINI 826 11500 HF 740 MBA

Light output 1 (integrated)

LED

Mounting mode

Pole top mounted

Shape and measurements

Length: 345 mm

Width: 826 mm

Height: 107 mm

Adjustability

Fixed

Electric

System power: 83 W

Appliance Class: II

Protection

IP: 66

IK: 08

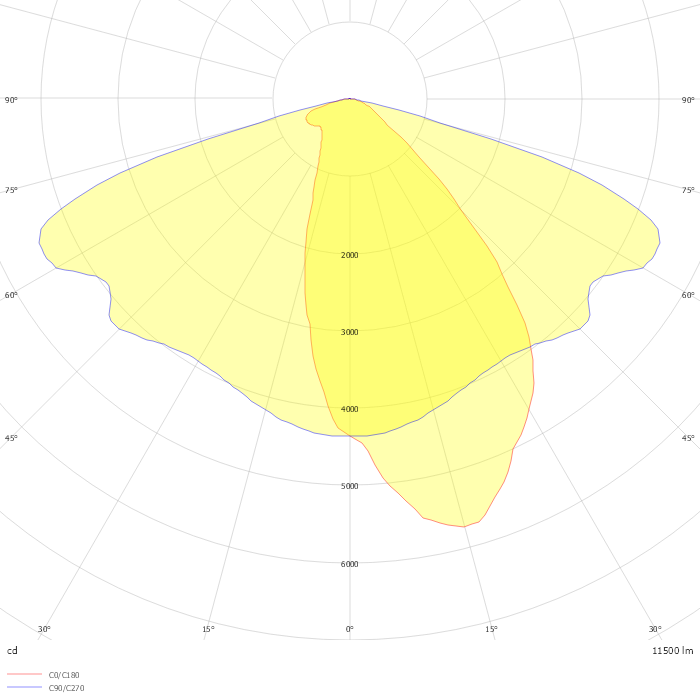

Photometric data

ZIP file

Download file
