Product data sheet

Play Flat Square Fixed

AG19-P7W9F1OU14

LedsC4

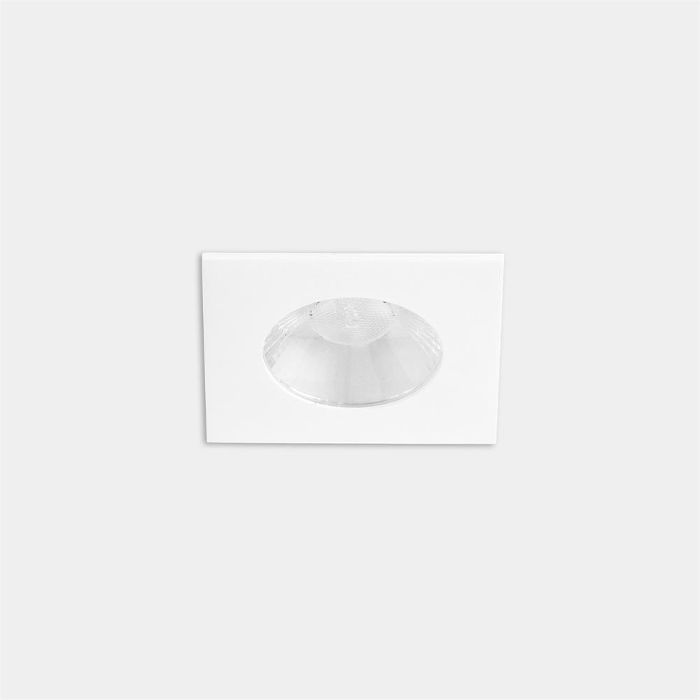

LedsC4 Play Flat Square Fixed AG19-P7W9F1OU14 Downlight For downlighting. Structure material: Aluminium. Structure finish: White. Diffuser material: Methacrylate. Diffuser finish: Transparent. Warranty: 5 Years. Product net weight (Kg): 0.19 Product length (mm): 65 Product width or diameter (mm): 65 Product height (mm): 67 Ø of the hole for recessing (mm): 58 Permitted ceiling thickness: 0-7 Class 2. Luminaire not suitable for coating with insulation materials. Glow wire test: 850. IP: IP54. LED. No. of lampholders or LEDs: 1. LED brand: CREE. Driver brand: VOSSLOH-SCHWABE. Maximum power of light source: 6.4W. Colour temperature: 3000K. Colour rendering index: 90. MacAdam Steps: 2. Hours of life: 50.000h L80B20. UGR: 17.0. Photobiological risk: RG1. Real flux (lm): 724. Real lm/W: 85. Voltage / frequency range: 100-240/50-60Hz. Voltage: 9. Equipment included: Yes. Total power: 8.5. Power factor: 0.90. Dimmable equipment included: ON-OFF.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 8.5 W 724 lm 85 lm/W 3000 K 90
Play Flat Square Fixed

Play Flat Square Fixed

Light output 1

1 x LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 65 mm

Width: 65 mm

Height: 2 mm

Adjustability

Fixed

Electric

System power: 8.5 W

Appliance Class: II

Protection

IP: 54

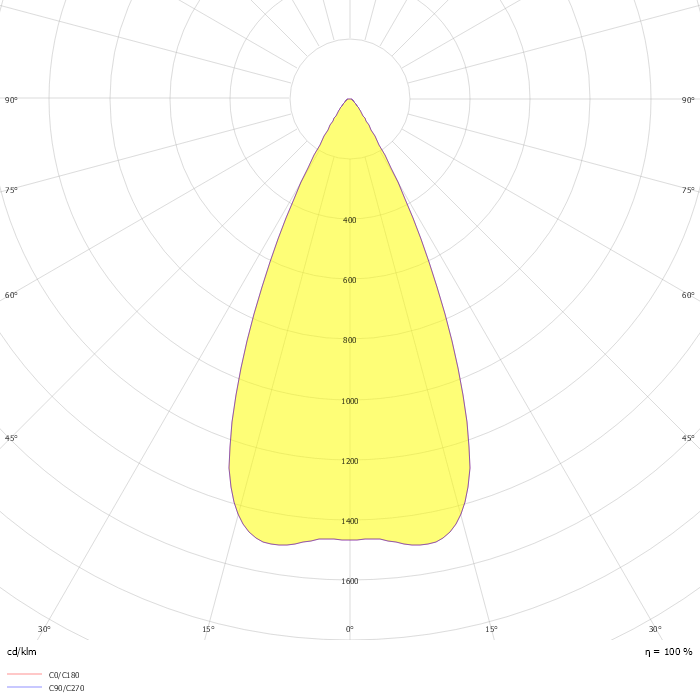

Photometric data

ZIP file
