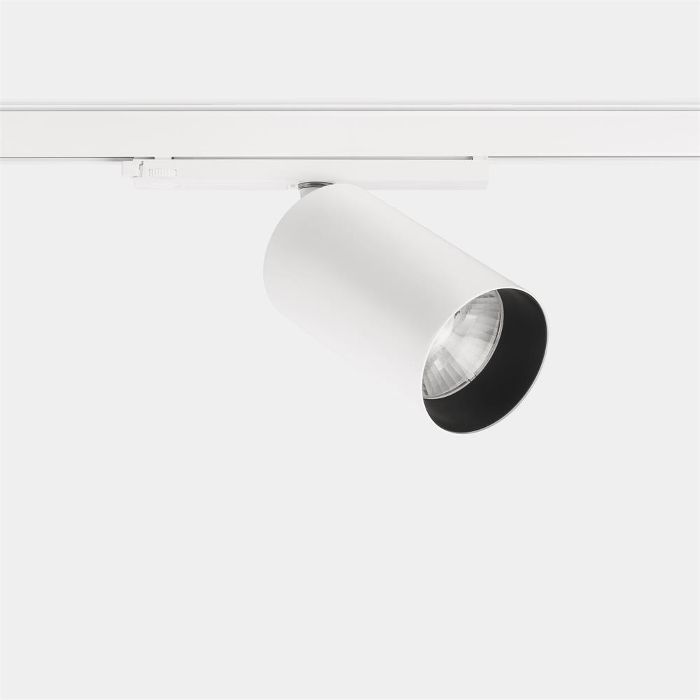

LedsC4 Atom Track 97 35-A078-14-TW Spotlight With adjustable lighting positioning. The optical module can easily be rotated 360º. Structure material: Aluminium. Structure finish: White. Diffuser material: Methacrylate. Diffuser finish: Transparent. Warranty: 5 Years. Product net weight (Kg): 0.91 Product length (mm): 250 Product width or diameter (mm): 97 Product height (mm): 225 Class 2. IP: IP20. LED. No. of lampholders or LEDs: 1. LED brand: BRIDGELUX. Driver brand: HEP. Maximum power of light source: 33W. Colour temperature: TW 2700-6500K. Colour rendering index: 92. MacAdam Steps: 3. Hours of life: 50.000h L80B20. UGR: 8.8. Photobiological risk: RG1. % de Flickering: <5%. Real flux (lm): 2892. Real lm/W: 78. Voltage / frequency range: 220-240V, 50/60Hz. Voltage: 36. Equipment included: Yes. Total power: 37. Power factor: 0.95. Dimmable equipment included: DALI DT8.
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 37 W | 2892 lm | 78 lm/W | 6500 K | 90 |
1 x LED | 37 W | 2403 lm | 65 lm/W | 2700 K | 90 |
Mounting mode
Ceiling mounted
Shape and measurements
Length: 31 mm
Width: 230 mm
Height: 55 mm
Adjustability
Fixed
Electric
System power: 37 W
Appliance Class: II
Protection
IP: 20

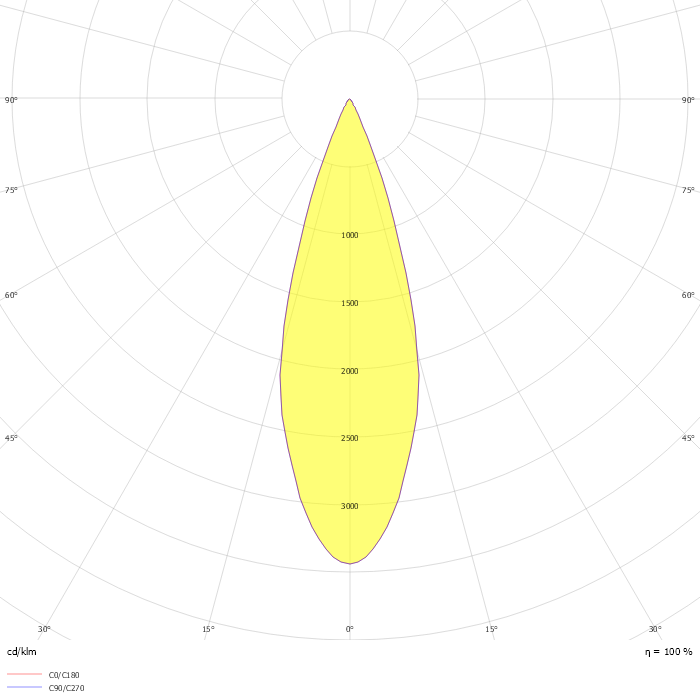

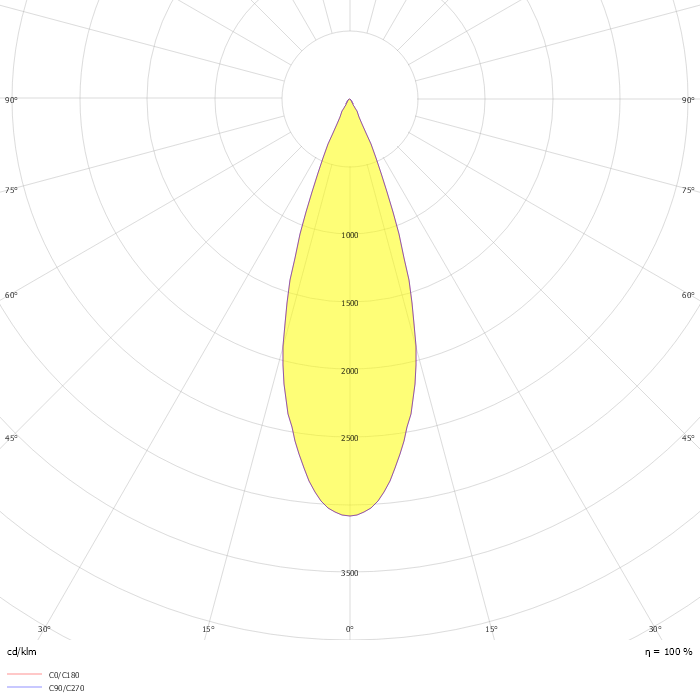

Photometric data
ZIP file
