Product data sheet

Pendant luminaire Milano Slim round 21W CRI > 80 4000K

2004.2495 - MILANO S PEN530-3100 LED3650-840 DID DALI

Regent

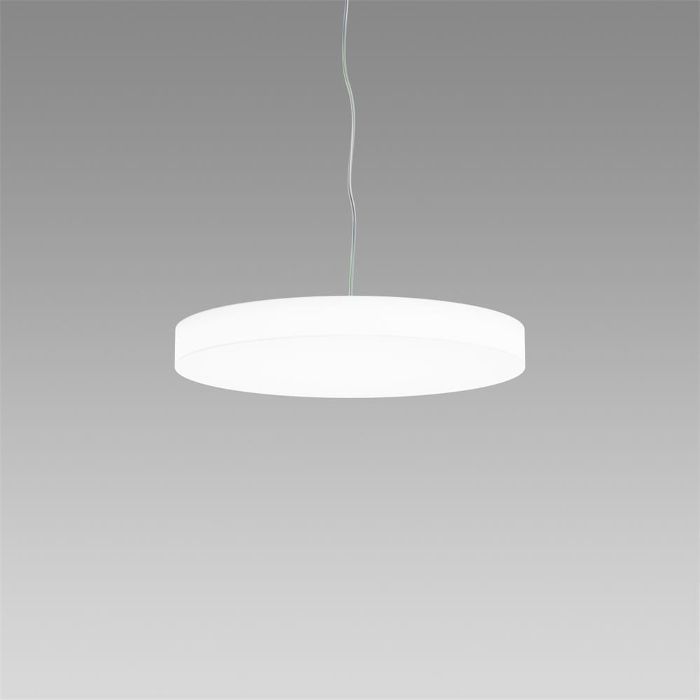

Product image 1: Pendant luminaire Milano Slim round 21W CRI > 80 4000K
Product image 1: Pendant luminaire Milano Slim round 21W CRI > 80 4000K

Product image 1: Pendant luminaire Milano Slim round 21W CRI > 80 4000K



IP
40

IK
04

Pendant luminaire Milano Slim round, with LED, system power: 21 W, standby power 0.5 W, luminous flux of luminaire 3650 lm, colour rendering index CRI > 80, 4000 K, neutral white, colour tolerances SDCM 3, lifetime LED L80 50'000 h, photobiological safety: the luminaire poses no danger (RG0), 230 V, direct-indirect light emission ( 58%/42% ), opal, 1 integral control gear, DALI, pendant suspension kit to be ordered separately, protection class I, ingress protection IP40, glow wire test 650 °C, impact strength: IK 04, this product contains a light source of energy efficiency class C and EPREL registration number: 1140601 Ø = 530 mm, H = 81 mm, p = 3100 mm

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 21 W 3650 lm 174 lm/W 4000 K 80
Pendant luminaire Milano Slim round 21W CRI > 80 4000K

Pendant luminaire Milano Slim round 21W CRI > 80 4000K

Light output 1

1 x LED

Mounting mode

Pendant

Shape and measurements

Length: 530 mm

Width: 530 mm

Height: 86 mm

Weight: 5.274 kg

Adjustability

Fixed

Design

Colour of housing: White

Electric

System power: 21 W

Appliance Class: I

Protection

IP: 40

IK: 04

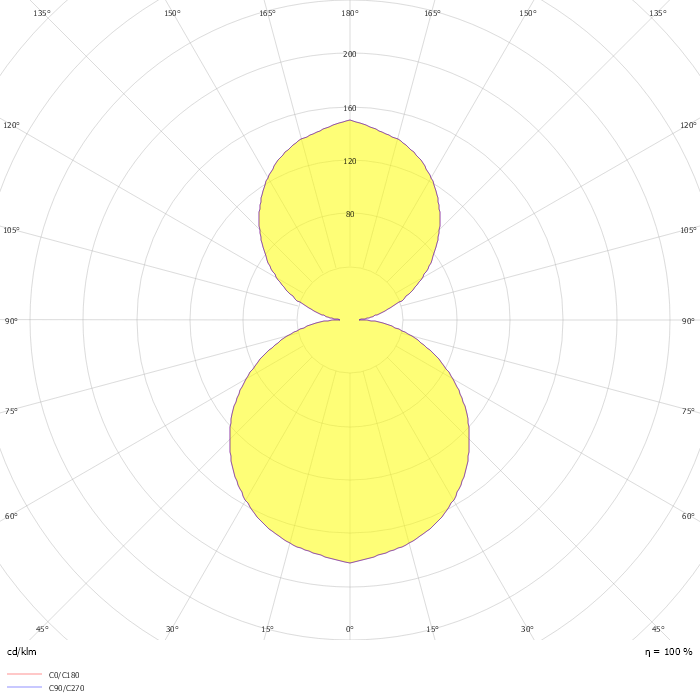

Photometric data

ZIP file
