Indoor luminaire. Assembly: directly mounted to ceiling construction or surface mounted on slings. The body material is polycarbonate. Colour - RAL 9006 (grey). Luminaire dimensions: 600 x 92 x 60 mm. Diffuser: PC (opalescent polycarbonate). The efficiency of the optical system is 82,84%. Beam angle: (C0-C180) / (C90-C270) - 107,2° / 134,4°. Light source type: LED. Colour of the light 3000 K. SDCM=3. CRI>80. Lifetime of LED sources: 100000 h L80/B10. Luminaire luminous flux: 3638,3 lm. Power of luminaire: 24,2 W. Luminaire's light efficiency: 150,3 lm/W. Driver: standard on/off (E). Voltage 220..240 V, 50..60 Hz. Power factor cosφ: >0,95. Circuit load capacity: 22 (B10), 34 (B16), 33 (C10), 54 (C16). Operating temperature range: -20 ÷ 40° C. Protection degree: IP66. Impact resistant: IK10. Protection against electric shock: I. Photobiological risk class (IEC/EN 62471): RG0. Looping through power supply 16 A. The luminaire can be made in CLO (Constant Lumen Output) version.
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
2 x LED | 12.1 W | 2196 lm | 181 lm/W | 3000 K | 80 |
Mounting mode
Ceiling mounted
Shape and measurements
Length: 600 mm
Width: 92 mm
Height: 60 mm
Adjustability
Fixed
Design
Colour of housing: Silver gray
Electric
System power: 24.2 W
Appliance Class: I
Protection
IP: 66
IK: 10
Other operating numbers
Ambient temperature range: -20...40°C

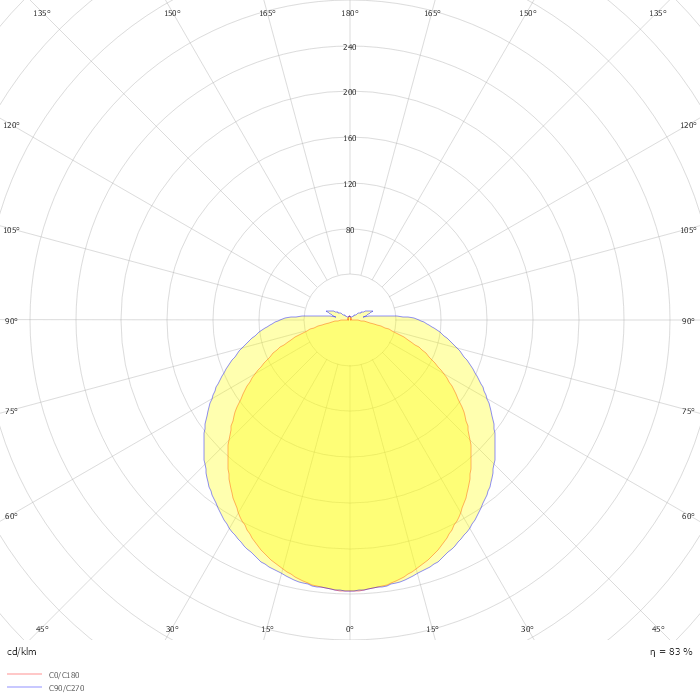

Photometric data
ZIP file
