Product data sheet

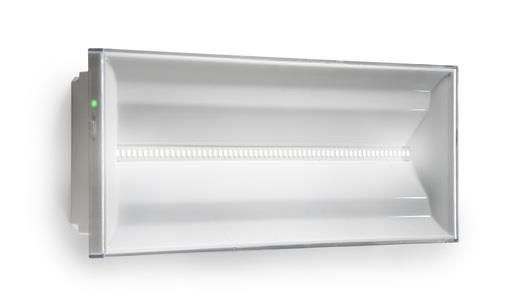

NEXITECH LED 400LM 1H30 IP65 CGLINE+
NEXI400-CGL-IP
Eaton Emergency Lighting
• From 150 to 800lm output flux • Comparable to 8, 11 and 18W fluorescent lamp • Ni-Cd HT high quality batteries Reliability and continuity of service was the main consideration in the development of the new NexiTech LED Emergency lighting range. The modern style, the simplicity of the shapes and the high quality surfaces make NexiTech LED ideal for any architectural context, while the precision of the mechanics and the sophisticated electronics guarantee a full unmatched reliability. The latest generation of LED light source and the careful study of the refractive parts allow a uniform light distribution without light waste.
| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 3.2 W | 400 lm | 125 lm/W | 4000 K | 80 |
Mounting mode
Ceiling mounted, Standing / Bollard
Shape and measurements
Length: 292 mm
Width: 111 mm
Height: 40 mm
Adjustability
Fixed
Design
Material impression: Aluminum, Plastic
Colour of housing: Anthracite / graphite
Designer: SIMES S.P.A.
Electric
System power: 6.4 W
Information regarding emergency functions
Supplementary emergency lighting
Emergency sign: N/A
Protection
IP: 65
Designation labels: CE

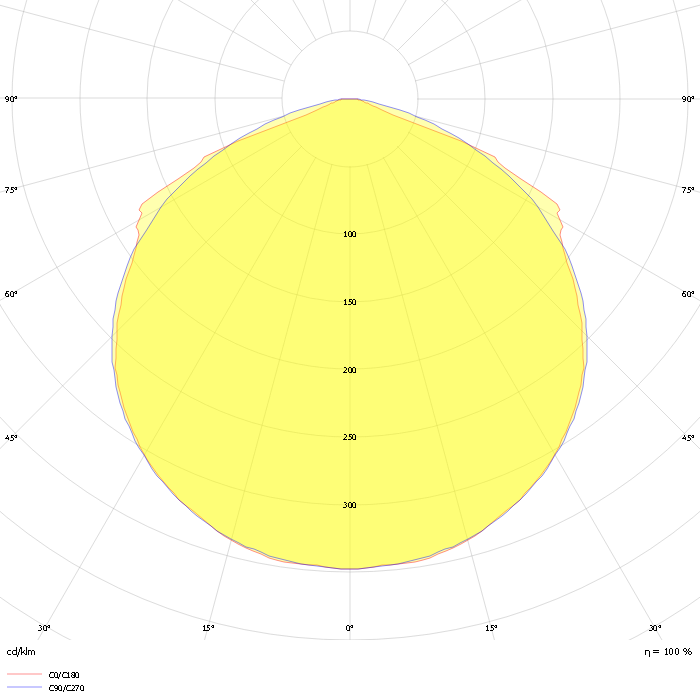

Photometric data
ZIP file
