PKWM-ANG-Y4HD-32LED-4K-700

Current

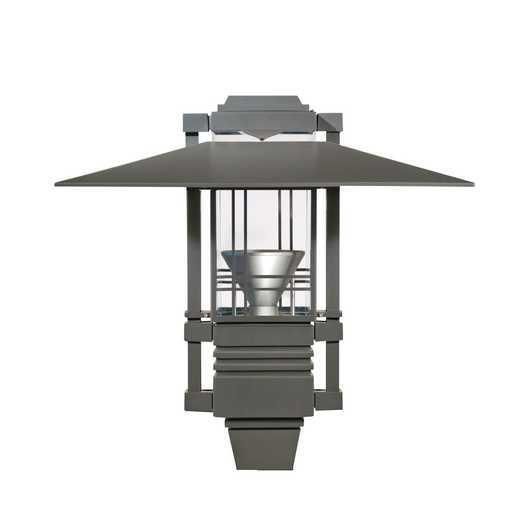

Product image 1: PKWM-ANG-Y4HD-32LED-4K-700
Product image 1: PKWM-ANG-Y4HD-32LED-4K-700

Product image 1: PKWM-ANG-Y4HD-32LED-4K-700



IP
66

Parkway Square is scaled in two sizes of luminaires and allows you to mix-and-match between four optical systems, and three hood stylesReliable, uniform, glare free illumination, 0-10V dimming ready, Integral surge suppression, Integral thermal protection,

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x C-70-CRI WITH DIFFUSED LENS. DATA SHOWN IS ABSOLUTE. Educational, Government, Healthcare, Hospitality, Hotel, Industrial, Institutional, Manufacturing, Pathway, Prison, Roadway, Site, Sports, Street, Direct, Wet Location 71 W 4898 lm 69 lm/W 4000 K 70
PKWM-ANG-Y4HD-32LED-4K-700

PKWM-ANG-Y4HD-32LED-4K-700

Light output 1

1 x C-70-CRI WITH DIFFUSED LENS. DATA SHOWN IS ABSOLUTE. Educational, Government, Healthcare, Hospitality, Hotel, Industrial, Institutional, Manufacturing, Pathway, Prison, Roadway, Site, Sports, Street, Direct, Wet Location

Mounting mode

Ceiling mounted, Pole integrated, Pole top mounted, Wall mounted

Shape and measurements

Length: 584 mm

Width: 584 mm

Height: 508 mm

Adjustability

Fixed

Design

Colour of housing: Silver gray, White, Black, Gold, Green, Anthracite / graphite

Electric

System power: 71 W

Protection

IP: 66

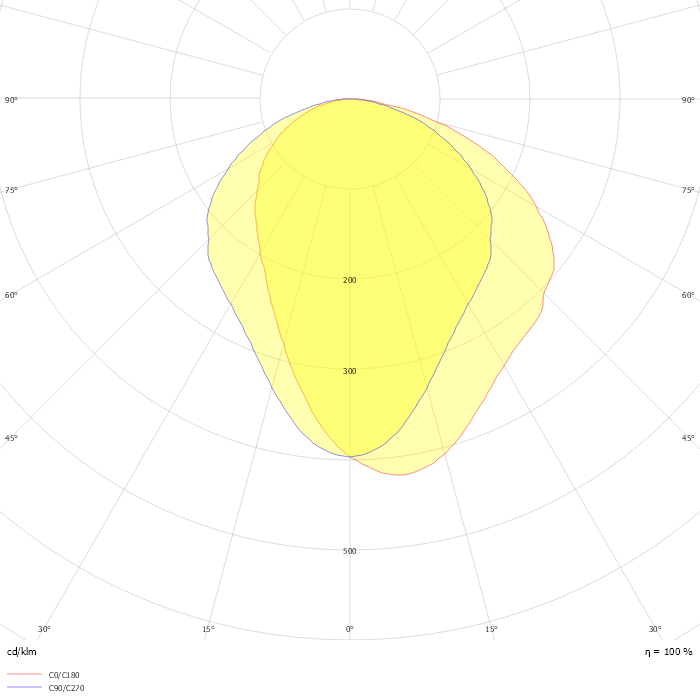

Photometric data

ZIP file

Download file
