Product data sheet

URBINO LED 12350lm 740 O6 FOTGJ HT KL.II

3530923

solar

Product image 1: URBINO LED 12350lm 740 O6 FOTGJ HT KL.II
Product image 1: URBINO LED 12350lm 740 O6 FOTGJ HT KL.II

Product image 1: URBINO LED 12350lm 740 O6 FOTGJ HT KL.II



IP
66

Gate og Veilysarmatur for fotgjengeroverganger. Linseoptikk. A-symmetrisk. 4000K. Leveres med 10kV overspenningsvern og 1m kabel. Lug nr 130222.5L102.051.983

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 110 W 11249 lm 102 lm/W 3783 K 74
URBINO LED 12350lm 740 O6 FOTGJ HT KL.II

URBINO LED 12350lm 740 O6 FOTGJ HT KL.II

Light output 1 (integrated)

LED

Mounting mode

Pole top mounted

Shape and measurements

Length: 550 mm

Width: 255 mm

Height: 100 mm

Adjustability

Fixed, Tiltable

Electric

System power: 110 W

Protection

IP: 66

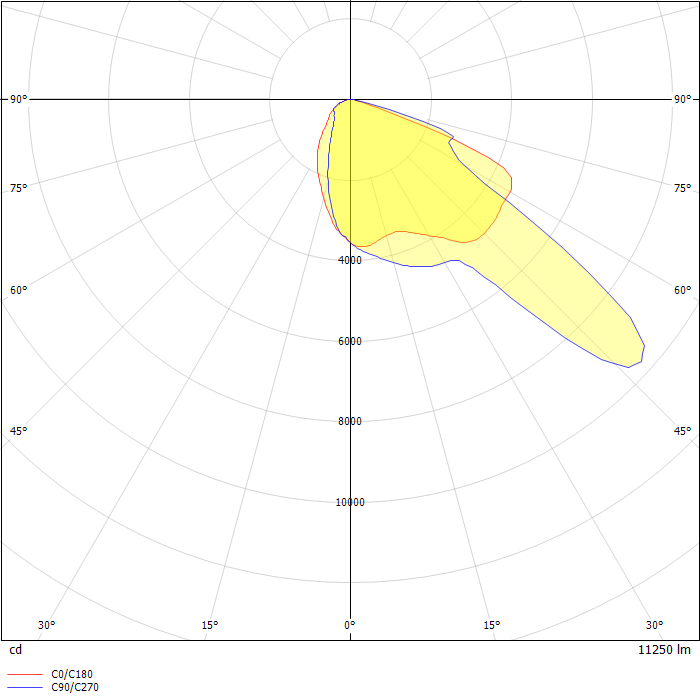

Photometric data

ZIP file

Download file
