Product data sheet
Alu Strip Mono SMD 2G - W - 20cm
L6024S2G
Proled (MBN GmbH)

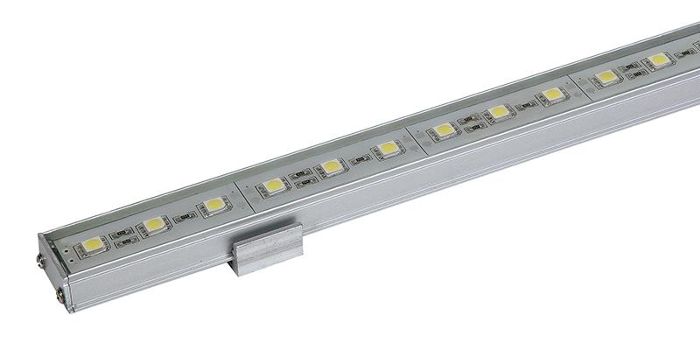

The PROLED ALU STRIPS RGB SMD are perfect for indirect and background lighting e.g. for fair or shop applications. The LEDs are moulded in an aluminium profile. Installation with two metal clamps. - Supply connectors are not IP53 - dimmable and controllable via DMX 512, DALI, KNX, 1-10V, CASAMBI, RF by MULTI power supplies or PRO CONTROLLER
Mounting mode
Ceiling mounted
Shape and measurements
Length: 200 mm
Width: 23 mm
Height: 12 mm
Weight: 0.06 kg
Adjustability
Fixed
Electric
System power: 2.8 W
Appliance Class: III
Protection
IP: 53
Other operating numbers
Ambient temperature range: -10...45°C

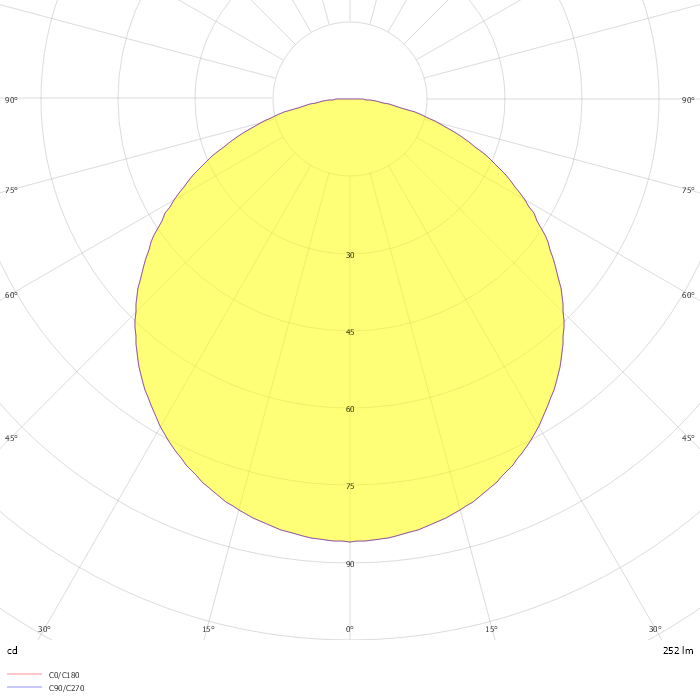

Photometric data
ZIP file
