Housing: in die-cast aluminium, with cooling fins. Optics: in high-performance prismatic and polished aluminium. Diffuser: tempered glass, 4 mm thick, resistant to thermal shock and impact (UNI EN 12150-1:2001). Coating: pre-treatment of metal surface, polyester powder coating to ensure resistance to corrosion and salt spray fogs, UV stabilised. Special coating: upon request: available with coating tested to withstand corrosion tests in agressive artificial atmospheres (UNI EN ISO 9227) or marine environments (sea front). Heat Sink: the heat sink is designed and made to allow the LEDs to operate at temperatures capable of ensuring excellent performance/output and long service life. LED: 80%: 50000h (L80B20) Low flicker: luminaire with very low flicker: evenly distributed light for greater visual safety. Photobiological risk: exempt risk group according to EN62471. : EN60598-1. With degree of protection according to EN60529. Equipment: - with galvanised and painted bracket - cable for electrical connection - EN 61547 compliant surge protection - silicone rubber gasket - external screws and bolts in stainless steel. Temperature Chart (Description): -20 °C ÷ +40 °C On request: - protection of up to 10kV - AMBER LED 2200K subcode -73 - CLD-D (1-10V) wiring, subcode -12 - CLD-D-D (DALI) wiring, subcode -0041 - possibility of central light management or with external presence/light sensors.
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
1 x cob_1710amb_38 | 41 W | 4453 lm | 109 lm/W | 2200 K | 65 |
Mounting mode
Ceiling mounted
Shape and measurements
Length: 335 mm
Width: 233 mm
Height: 60 mm
Adjustability
Fixed
Design
Material impression: Aluminum
Colour of housing: Anthracite / graphite
Electric
System power: 41 W
Appliance Class: II
Protection
IP: 66
IK: 08
Designation labels: CE, ENEC
Other operating numbers
Ambient temperature range: -20...40°C

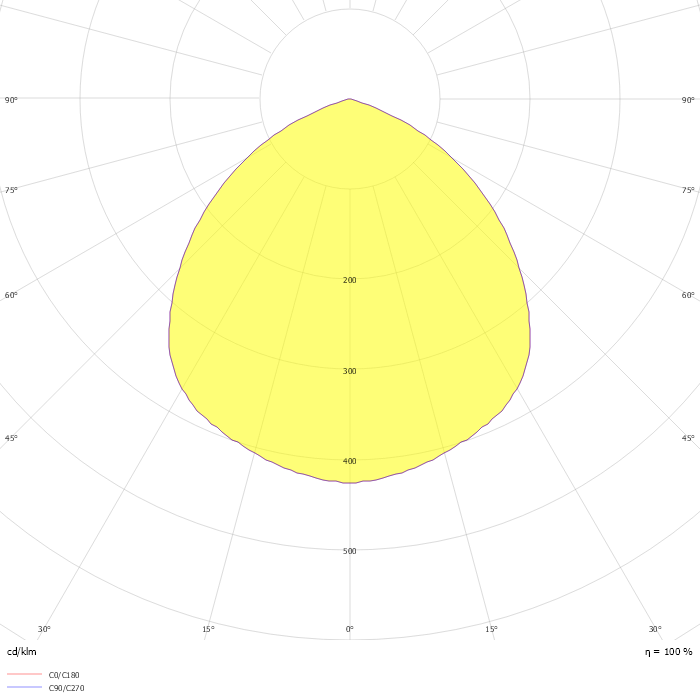

Photometric data
ZIP file
