Product data sheet
OMEGA LED 1000-840 HF E3
96602042
Thorn Lighting
A ceiling recessed LED luminaire with a slim 12mm profile. Electronic, fixed output control gear with 3 hour, manual test, LED emergency lighting circuit. Class I electrical, IP44 from below, IP44_IP20 from above, IK02. Body: sheet steel, white (RAL9016). Diffuser: UV-stabilized opal acrylic. Electrical connection via push wire terminal blocks, loop in/loop out possible. Complete with 4000K LED Dimensions: 300 x 300 x 12 mm Total power: 12.3 W Weight: 3.8 kg
| Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| 1 x General service incandescent lamp | 12 W | 390 lm | 389964 lm/W | 3000 K | 99 |
Mounting mode
Ceiling recessed
Shape and measurements
Length: 300 mm
Width: 300 mm
Height: 12 mm
Weight: 3.8 kg
Design
Colour of housing: White
Electric
System power: 12.3 W
Voltage: 220-240 V AC
Appliance Class: I
Information regarding emergency functions
Supplementary emergency lighting
Emergency sign: N/A
Protection
IP: 20
IK: 02
Designation labels: CE

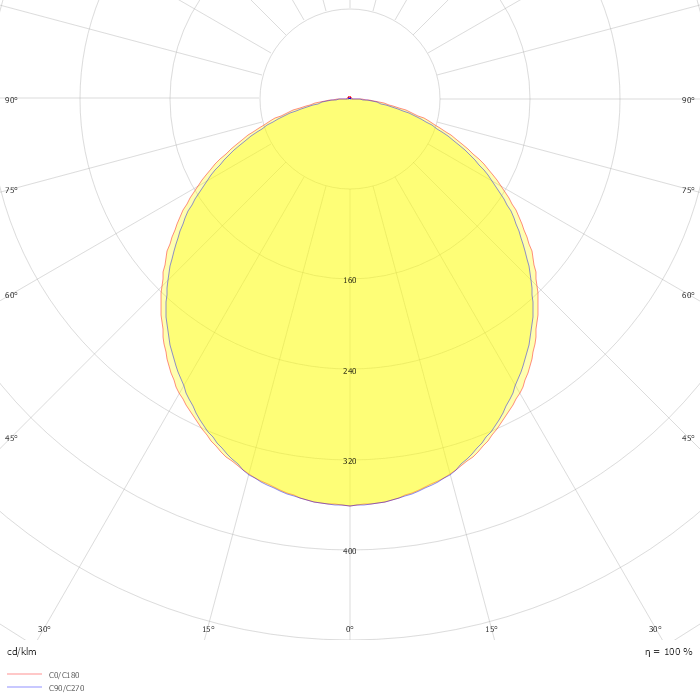

Photometric data
ZIP file
