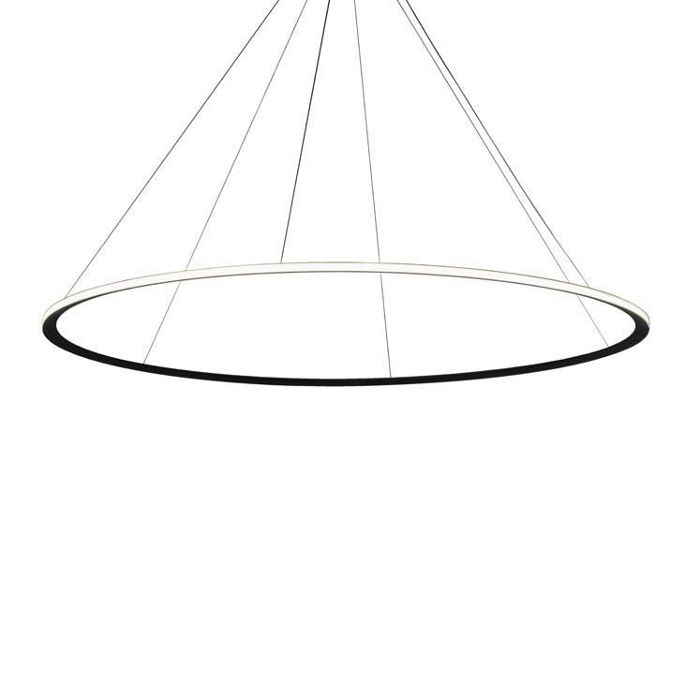

LedsC4 Circular Outward ø2000 Surface CF4C-00X9AZDU05V1 Pendant for indoor use. For sideways lighting. Structure finish: Black. Diffuser material: Polycarbonate. Diffuser finish: Opal. Warranty: 5 Years. Product net weight (Kg): 12 Product width or diameter (mm): 2042 Product height (mm): 5000 Class 1. IP: IP20. LED. No. of lampholders or LEDs: 1. Driver brand: MEAN WELL. Maximum power of light source: 123.2W. Colour temperature: 4000K. Colour rendering index: 90. MacAdam Steps: 3. Hours of life: 50.000h L80B20. UGR: 7.0. Photobiological risk: RG1. Real flux (lm): 10522. Real lm/W: 82. Voltage / frequency range: 90-305/50-60Hz. Voltage: 2,8. Equipment included: Yes. Total power: 129. Power factor: 0.90. Dimmable equipment included: DALI-2.
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 129 W | 10522 lm | 82 lm/W | 4000 K | 90 |
Mounting mode
Pendant, Table luminaire
Shape and measurements
Length: 2000 mm
Width: 2000 mm
Height: 30 mm
Adjustability
Fixed
Electric
System power: 129 W
Appliance Class: I
Protection
IP: 20
Photometric data
ZIP file
