Product data sheet

CESAR1CIRC 1X35W 12V QR-CBC51/GU5,3/L

96546660

Thorn Lighting

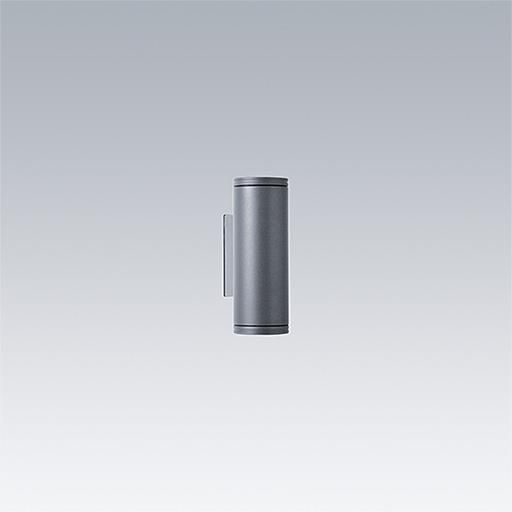

Product image 1: CESAR1CIRC 1X35W 12V QR-CBC51/GU5,3/L
Product image 1: CESAR1CIRC 1X35W 12V QR-CBC51/GU5,3/L

Product image 1: CESAR1CIRC 1X35W 12V QR-CBC51/GU5,3/L



IP
65

IK
08

A robust, wall-mounted downlight for 1 x 35W QR-CB 51 lamp. The grey aluminium body, with integral gear and sealed to IP65, offers an aesthetic design both by day and by night. Dimensions: 145 x 235 x 90 mm Total power: 35 W Weight: 1.78 kg

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x General service incandescent lamp 35 W 600 lm 11 lm/W 3000 K 90
CESAR1CIRC 1X35W 12V QR-CBC51/GU5,3/L

CESAR1CIRC 1X35W 12V QR-CBC51/GU5,3/L

Light output 1

1 x General service incandescent lamp

Mounting mode

Wall mounted

Shape and measurements

Length: 145 mm

Width: 235 mm

Height: 90 mm

Weight: 1.8 kg

Design

Material impression: Aluminum

Electric

System power: 35 W

Voltage: 220-240 V AC

Appliance Class: I

Protection

IP: 65

IK: 08

Designation labels: CE

Photometric data

ZIP file

Download file
