Product data sheet

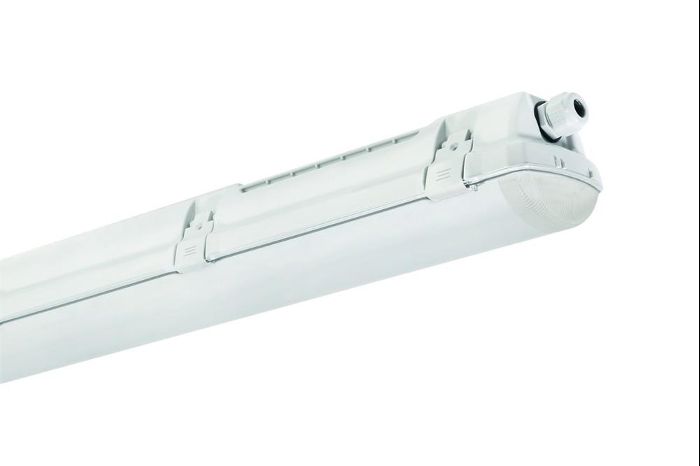

NANOTTICA 1.5ft ML PC 5500/840 3F

107304

TREVOS

absolute control over emitted light thanks to patented nano-optics; variable suspension spacing ranging from 970 - 1230 mm; enable the light to be installed onto suspension fittings left over from previous lighting; basic beam angle: medium beam (MB); optimal mounting height: 3.5 to 8 m; ON/OFF electronic driver (AC, DC on demand); Body: grey PC (high mechanical resistance, UV stability, RAL 7035); Diffuser: clear PC with nano-optics (high mechanical resistance, UV stability); Reflector: steel sheet, white (RAL 9003); Clips: polyamide + 15 % fibreglass; Sealing: polyurethane (PUR), foam-filled base groove; Connection: screwless five-pole terminal block, 5-wire connecting cabling for feed-through installation (1.5 mm2 cross-section, 2.5 mm2 available on demand); Power: 33,3 W; Luminaire flux: 5250 lm; Lifetime: L90/B10; 50000 hours; Impact strength: IK10; Ambient temperature: -25|45 °C; Weight: 2 kg;

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 33.3 W 5590 lm 168 lm/W 4000 K 80
NANOTTICA 1.5ft ML PC 5500/840 3F

NANOTTICA 1.5ft ML PC 5500/840 3F

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 1455 mm

Width: 98 mm

Height: 84 mm

Adjustability

Fixed

Design

Material impression: Plastic

Colour of housing: Silver gray, White

Designer: TREVOS

Electric

System power: 33.3 W

Ballast: ECG

Appliance Class: I

Protection

IP: 66

IK: 10

Designation labels: CE, ENEC

Other operating numbers

Ambient temperature range: -25...45°C

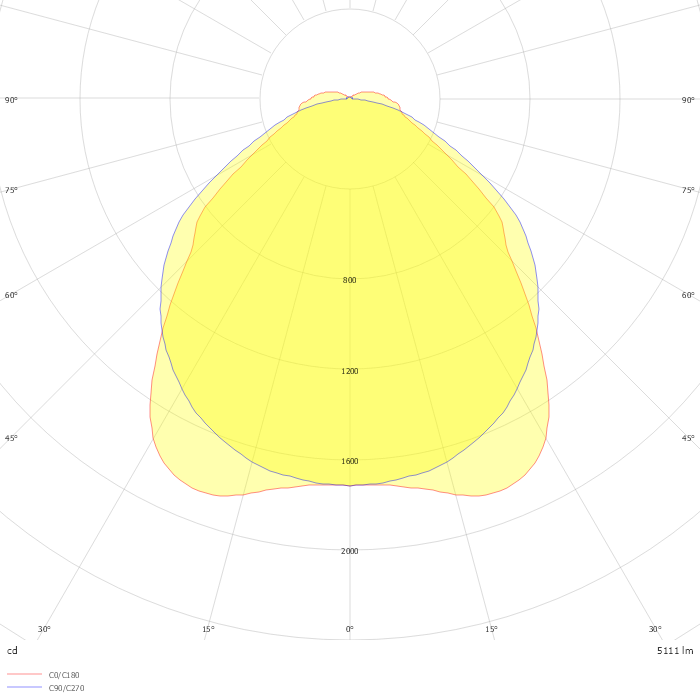

Photometric data

ZIP file
