Product data sheet

exStreet Z18M 15700lm 740 GC H

4522519

Exaktor

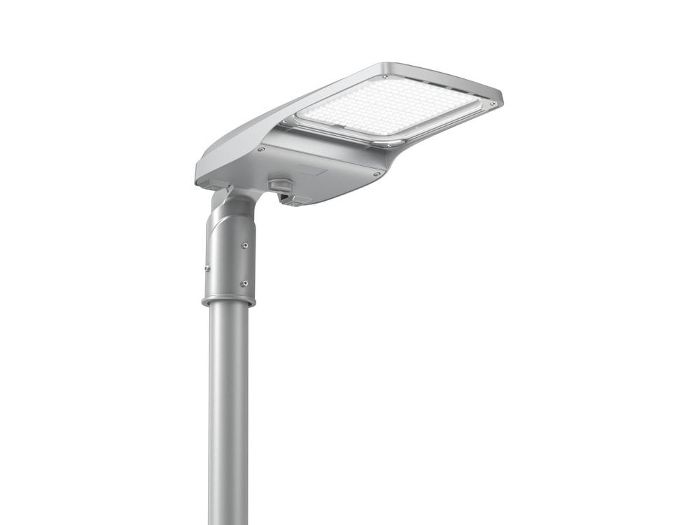

Product image 1: exStreet Z18M 15700lm 740 GC H
Product image 1: exStreet Z18M 15700lm 740 GC H

Product image 1: exStreet Z18M 15700lm 740 GC H



IP
66

IK
08

exStreet Z18 on tehokas ja pienikokoinen katuvalaisin, jossa on vakiona 2kpl Zhaga-liittimiä. Valaisimen voi varustaa päivänvaloanturilla tai langattomalla Bluetooth-pohjaisella liiketunnistimella. Valaisin toimitetaan joko 8 m tai 10 m pitkällä, valmiiksi kytketyllä liitosjohdolla. Rungon värivaihtoehtoina ovat musta ja harmaa. exStreet-valaisimen käyttökohteita ovat piha- ja parkkialueet sekä kävelytiet.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 100 W 15780 lm 158 lm/W 4000 K 70
exStreet Z18M 15700lm 740 GC H

exStreet Z18M 15700lm 740 GC H

Light output 1 (integrated)

LED

Mounting mode

Pole top mounted, Contact rail

Shape and measurements

Length: 737 mm

Width: 338 mm

Height: 167 mm

Adjustability

Free

Electric

System power: 100 W

Ballast: ECG

Protection

IP: 66

IK: 08

Designation labels: CE

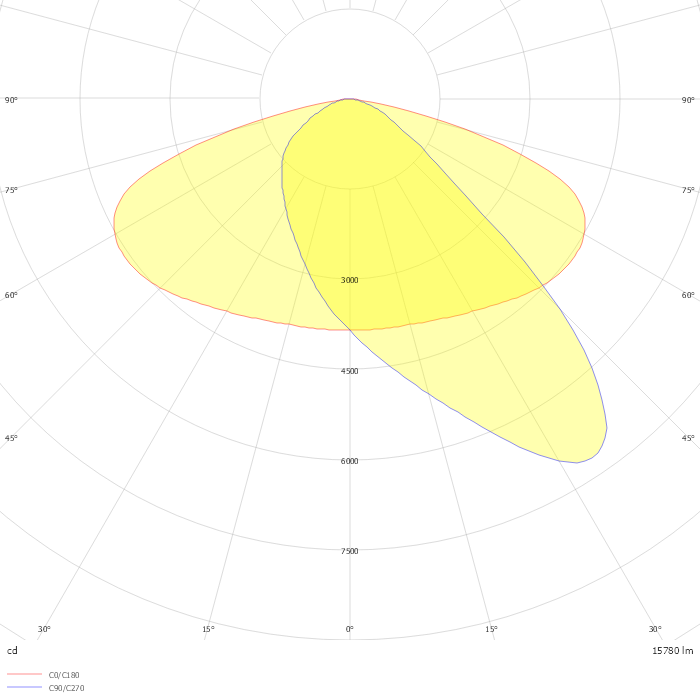

Photometric data

ZIP file

Download file
