Product data sheet

FRAX M 930 LINEAR H DIM5

26011 9345

Delta Light

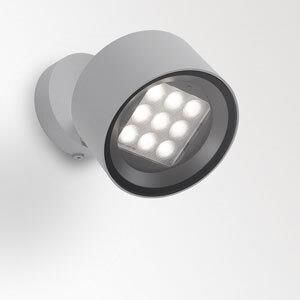

Product image 1: FRAX M 930 LINEAR H DIM5
Product image 1: FRAX M 930 LINEAR H DIM5

Product image 1: FRAX M 930 LINEAR H DIM5



IP
65

IK
08

Luminaire, wall surface mounted or floor surface mounted (outdoor use) from Deltalight, named FRAX M 930 LINEAR H DIM5, available in the colour(s): alu grey, flemish bronze outdoor, anthracite (dark grey). This luminaire is equipped with LED cluster 23,4W / CRI>90 (R9: 64) / 3000K / 2654lm with build-in dimmable driver to operate on a voltage of 110-277V / 50-60Hz. Dimming protocol: DALI. Light distributor: lens 14°.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 27 W 2654 lm 98 lm/W 3000 K 90
FRAX M 930 LINEAR H DIM5

FRAX M 930 LINEAR H DIM5

Light output 1

1 x LED

Mounting mode

Wall mounted, Floor mounted

Shape and measurements

Height: 87 mm

Diameter: 153 mm

Weight: 2.4 kg

Electric

System power: 27 W

Appliance Class: 0

Protection

IP: 65

IK: 08

Designation labels: CE

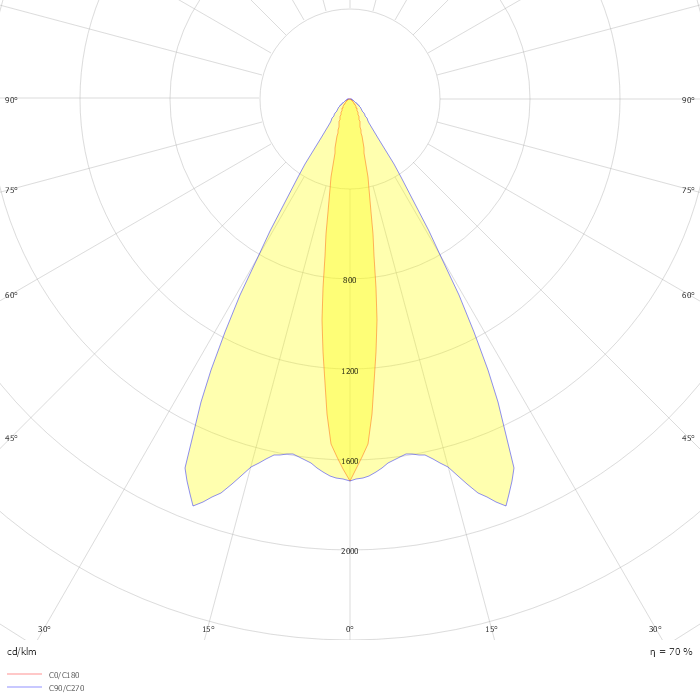

Photometric data

ZIP file

Download file
