Product data sheet

DOWNLIGHTS - Unity Downlight

AUND3/1/WW

Ansell Lighting

Product image 1: DOWNLIGHTS - Unity Downlight
Product image 1: DOWNLIGHTS - Unity Downlight

Product image 1: DOWNLIGHTS - Unity Downlight



IP
65

• IP65* compact high performance architectural downlight suitable for commercial, hospitality and retail applications • UGR<19 (unified glare rating) compliant luminaire assisting to eliminate glare for visual comfort (AUND1/** and AUND2/** only) • Upto 130 lm/W efficiency and CRI 90 provides elite level performance and light quality • Die-cast aluminium construction and powder coated finish provide stylish and modern appearance • Remote driver with plug and play connection • Dimmable and Emergency options, standard and Self-Test Emergency available using the Hawk Kit Emergency Pack Please note: Only bottom of the fitting obtains IP65 rating

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 24.438 W 3514 lm 144 lm/W 3000 K 90
DOWNLIGHTS - Unity Downlight

DOWNLIGHTS - Unity Downlight

Light output 1

1 x LED

Mounting mode

Ceiling recessed

Shape and measurements

Height: 175 mm

Diameter: 175 mm

Adjustability

Fixed

Electric

System power: 24.44 W

Appliance Class: I

Protection

IP: 65

Designation labels: CE

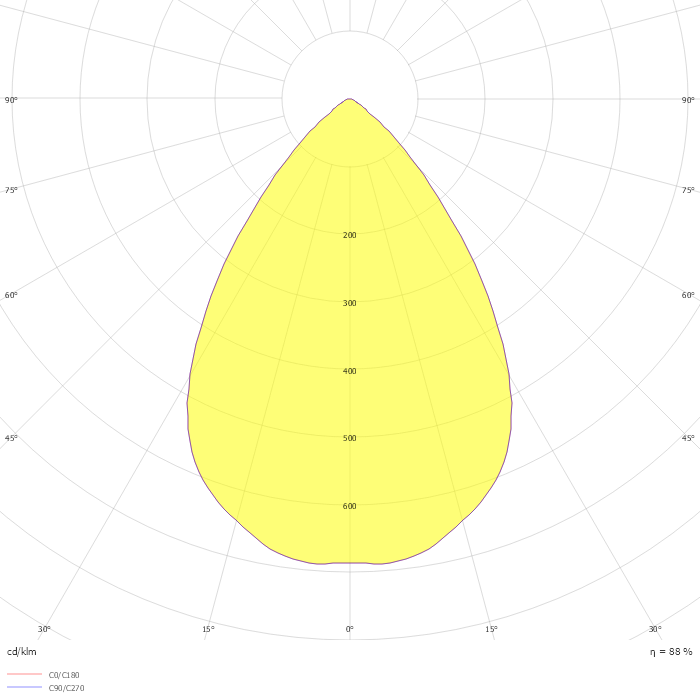

Photometric data

ZIP file

Download file
