Product data sheet

DIAMO 1500-940 3CV FL WHM

60715126

Zumtobel

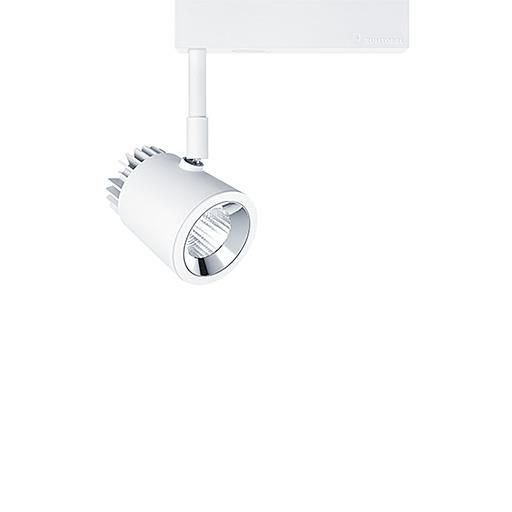

LED spotlight for high-performance accent lighting; precise light distribution with no diffuse light and excellent glare control; compact design with minimalist look; innovative thermal design achieves passive cooling; Luminaire with 3-phase universal adapter with control gear unit in trackbox adapter (only for Zumtobel 3-phase/L3+DALI track); lamp(s): LED1500-940, Luminaire or spotlight with FLOOD light distribution (27 °); Colour rendering Ra > 90, colour temperature 4000 K (neutral white); Luminaire luminous flux: 1500 lm, Luminaire efficacy: 68 lm/W; service life: 50000h at 80% luminous flux; maximum brilliance thanks to specially designed reflector made of high-grade aluminium, silver anodised; passive cooling integrated in housing;total power: 22 W; mains voltage: 220-240V/ 50/60Hz; spotlight can rotate through 360° and tilt through 90°; spotlight housing made of die-cast aluminium, colour: microtextured paint in white; control box of polycarbonate; dimensions: 150x80x191 mm; weight: 0.73 kg; Note: suitable for mounting horizontally and vertically on wall; not suitable for point outlets.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 22 W 1500 lm 68 lm/W 3000 K 90
DIAMO 1500-940 3CV FL WHM

DIAMO 1500-940 3CV FL WHM

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 150 mm

Width: 80 mm

Height: 191 mm

Weight: 0.7 kg

Design

Material impression: Aluminum

Colour of housing: White

Electric

System power: 22 W

Voltage: 220-240 V AC

Appliance Class: II

Protection

IP: 20

Designation labels: CE

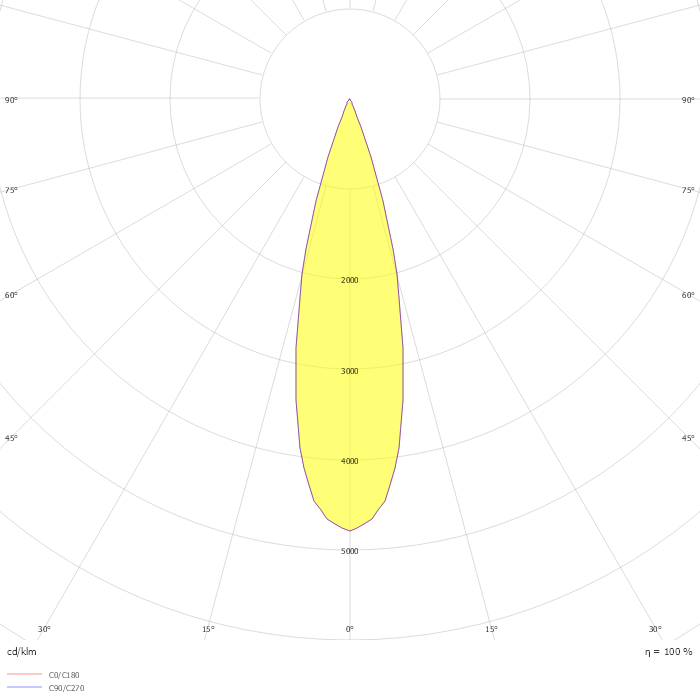

Photometric data

ZIP file
