Product data sheet

Downlight SOL DL-M Square - NW

L710SDM08S

Proled (MBN GmbH)

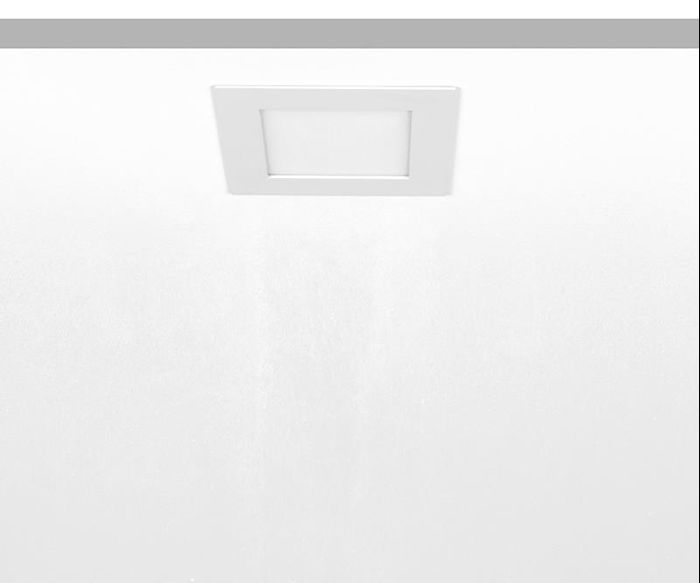

Product image 1: Downlight SOL DL-M Square - NW
Product image 1: Downlight SOL DL-M Square - NW

Product image 1: Downlight SOL DL-M Square - NW



IP
40

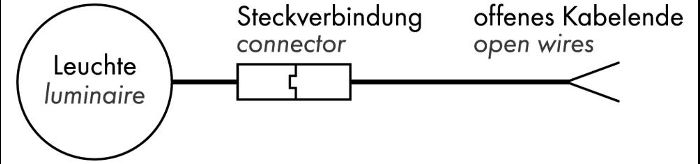

- Supply cable with connector for easy installation

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 12 W 1100 lm 92 lm/W 4000 K 80
Downlight SOL DL-M Square - NW

Downlight SOL DL-M Square - NW

Light output 1 (integrated)

LED

Mounting mode

Ceiling recessed

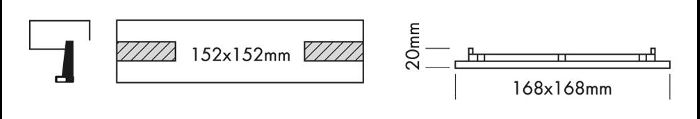

Shape and measurements

Length: 168 mm

Width: 168 mm

Height: 20 mm

Weight: 0.36 kg

Adjustability

Fixed

Electric

System power: 12 W

Appliance Class: III

Protection

IP: 40

Other operating numbers

Ambient temperature range: -10...45°C

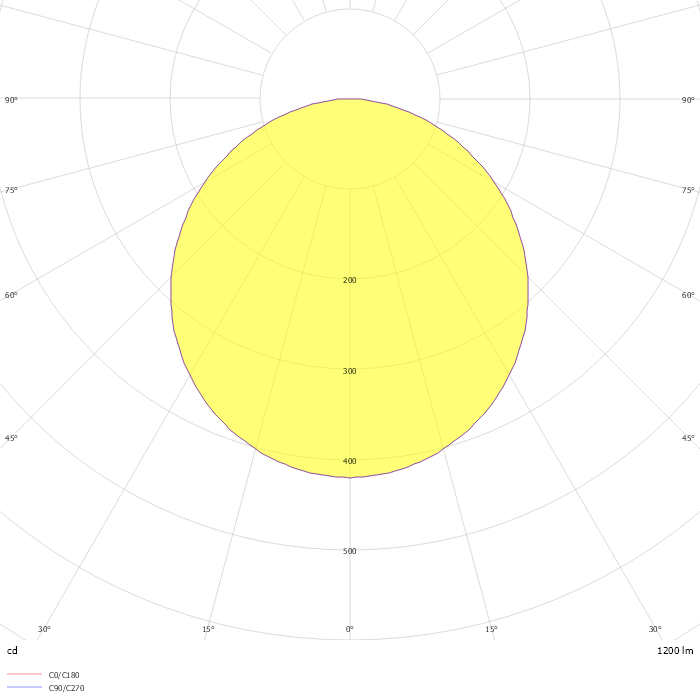

Photometric data

ZIP file

Download file
