Product data sheet

NLED9486M 12W 4000K 明装筒灯(平光黑)

70089609

NVC

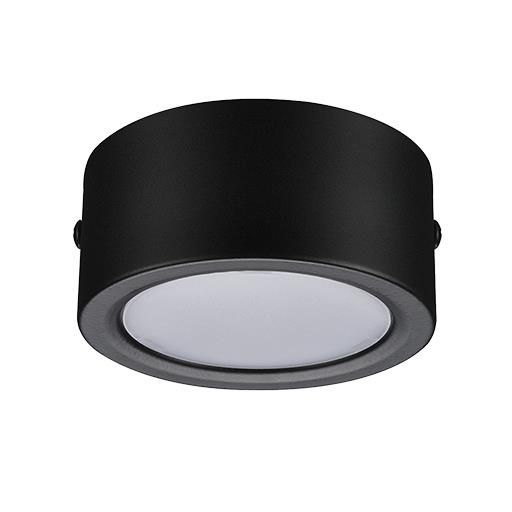

Product image 1: NLED9486M 12W 4000K 明装筒灯(平光黑)
Product image 1: NLED9486M 12W 4000K 明装筒灯(平光黑)

Product image 1: NLED9486M 12W 4000K 明装筒灯(平光黑)



IP
20

IK
04

产品描述： 能效等级：3级 光源类型：RETOP LED SMD 驱动电源：内置一体恒流驱动 灯体材质：SPCE+PC 系列可选 ： 安装方式 ：明装 灯具尺寸 ：φ100/φ125/φ150/φ200 面环颜色 ：99半光白/04平光黑 灯具尺寸 ：φ100/φ125/φ150/φ200 色温 ：3000K/4000K/5700K 显指 ：Ra80 功率 ：6W/8W/12W/15W/18W 功率因数PF：0.5 光通（lm）：470/510/510lm (6W) 680/740/740lm (8W) 1020/1100/1100lm (12W) 1250/1340/1340lm (15W) 1490/1530/1530lm (18W) 更新说明： 暂无更新，敬请期待。 更多信息： 暂无链接，敬请期待。

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 11.89 W 1100 lm 93 lm/W 4000 K 80
NLED9486M 12W 4000K 明装筒灯(平光黑)

NLED9486M 12W 4000K 明装筒灯(平光黑)

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Height: 45 mm

Diameter: 150 mm

Weight: 0.25 kg

Adjustability

Fixed

Electric

System power: 11.89 W

Appliance Class: I

Protection

IP: 20

IK: 04

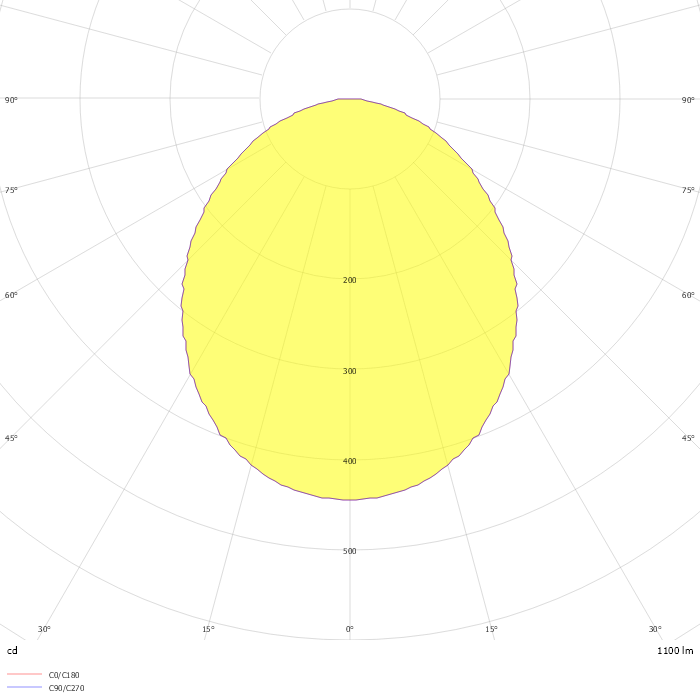

Photometric data

ZIP file

Download file
